Remove/Install Air Intake Pipe - AR09.10-S-8131EG

Model 447, 448 with engine 274

MODIFICATION NOTES

07.12.2016 Method completely revised Operation steps 1 to 28
01.12.2023 Screw, housing vent to charge air distributor   BA09.41-Z-1005-01KOV
25.03.2024 Nut, line to alternator   BA15.40-Z-1002-01KOX

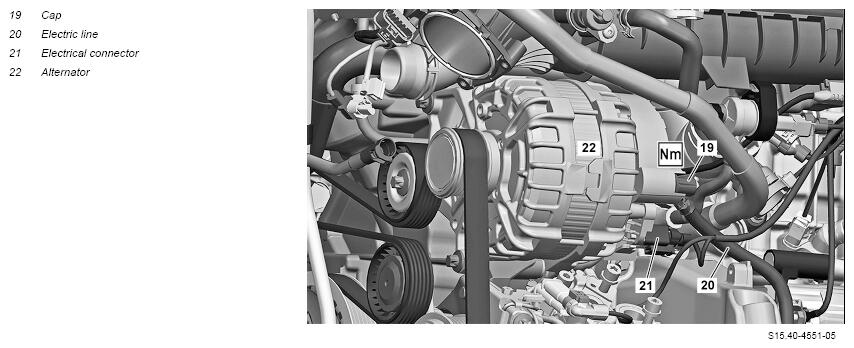

G16484728Courtesy of MERCEDES-BENZ USA

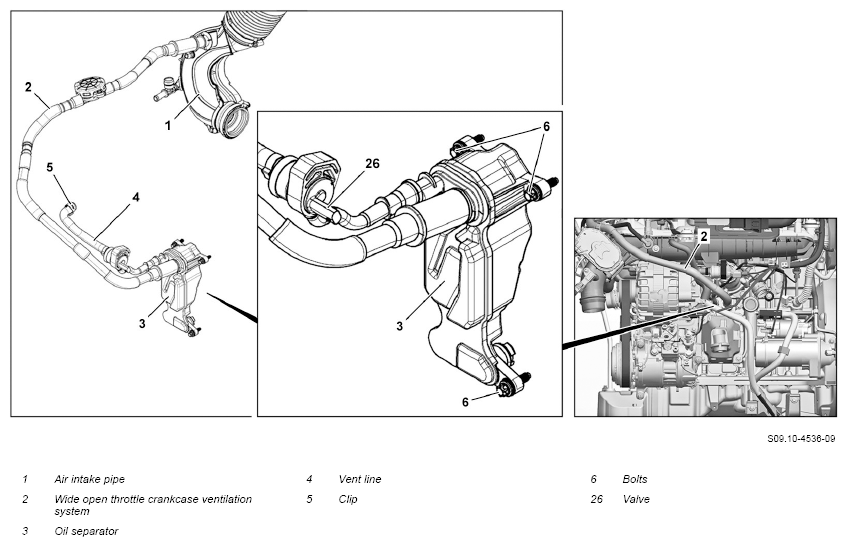

G16484729Courtesy of MERCEDES-BENZ USA

Shown is model 447 with code ZU7 (National version for Canada)

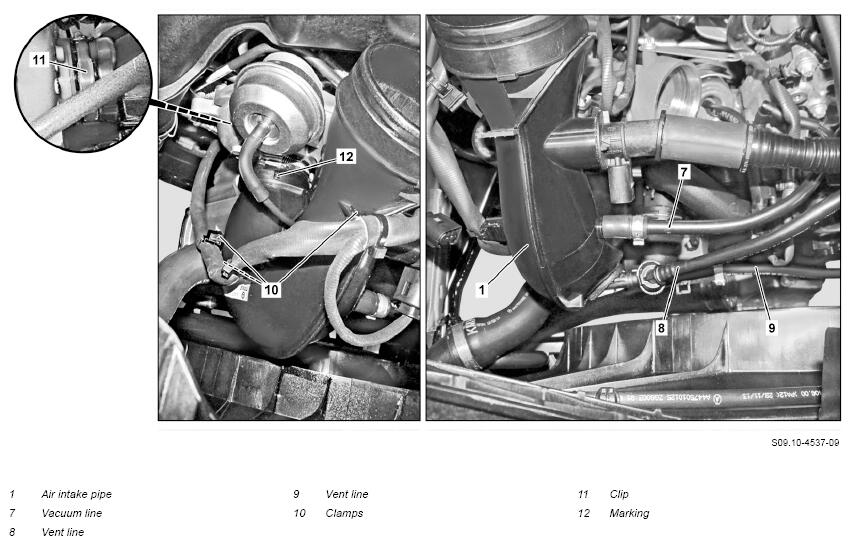

G16484730Courtesy of MERCEDES-BENZ USA

Shown is model 447 with code ZU7 (National version for Canada)

Shown is model 447 with code ZU7 (National version for Canada)

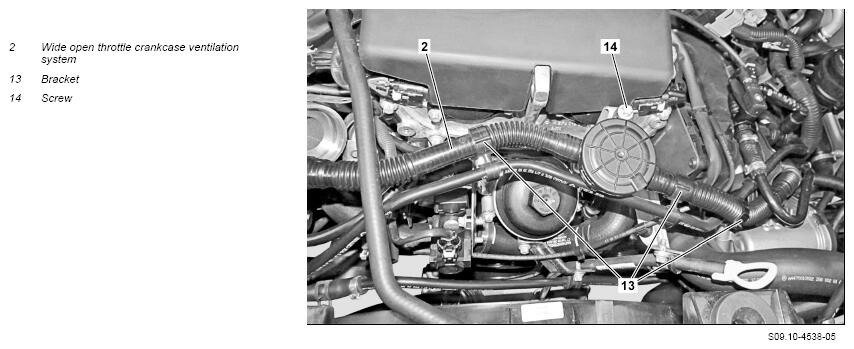

G16484731Courtesy of MERCEDES-BENZ USA

Shown is model 447 with code ZL3 (National version for Latin America)

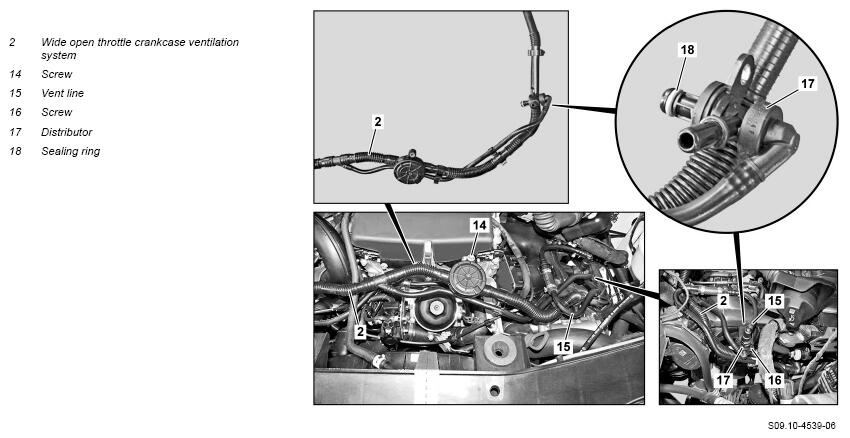

G16484732Courtesy of MERCEDES-BENZ USA

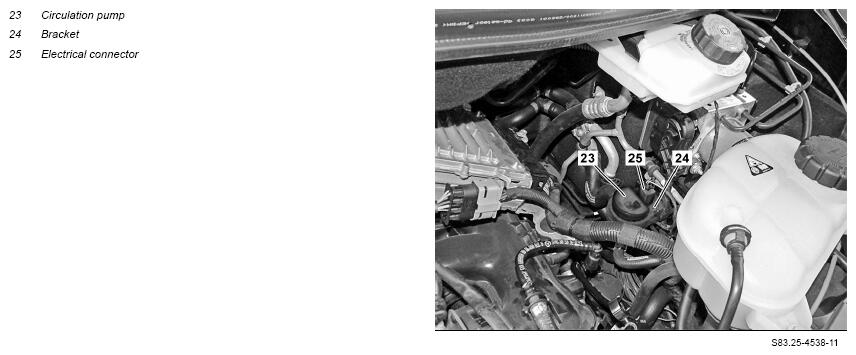

G16484733Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
REMOVINGINSTALLING Remove/install
1 Remove ground line from battery   AR54.10-S-0003E
2 Remove left engine support   AR22.10-S-4350EG
3 Unplug electrical connection (21) at alternator (22)
4 Remove cover cap (19)
5 Remove electrical line (20) from alternator (22) IMPORTANT To do this, unscrew and remove nut.
    TORQUE SPECIFICATION Nut, line to alternator *BA15.40-Z-1002-01KOX
6 Disconnect electrical connection from valve (26)
7 Remove screws (6) TORQUE SPECIFICATION Bolt, oil separator to crankcase *BA01.20-Z-1006-01KOW
8 Remove oil separator (3) from crankcase INSTALLATION IMPORTANT : Replace seal.
9 Open clamp (5) and push on the vent line (4) in the direction of the oil separator (3) SPECIAL TOOL Hose clamp pliers Fig 1
10 Remove vent line (4) from charge air distributor
11 Remove vent line (15) on distributor (17) Model 447 with engine 274
with code ZL3 (National version for Latin America)

12 Unscrew screw (16) Model 447 with engine 274
with code ZL3 (National version for Latin America)
TORQUE SPECIFICATION Screw/bolt, housing vent to charge air distributor
*BA09.41-Z-1005-01KOV
13 Remove distributor (17) from charge air distributor Model 447 with engine 274
with code ZL3 (National version for Latin America)
INSTALLATION IMPORTANT : Replace sealing ring (18).

14 Remove engine air intake duct downstream of air filter   AR09.10-S-8130E
15 Remove vacuum line (7) on air intake pipe (1)
16 Remove vent line (8) from air intake pipe (1) Model 447 with engine 274
except code ZL3 (National version for Latin America)
except code ZU7 (National version for Canada)
except code ZU8 (National version for USA)
Model 447 with engine 274
with code ZU7 (National version for Canada)
Model 447 with engine 274
with code ZU8 (National version for USA)
Model 448 with engine 274

17 Remove vent line (9) on air intake pipe (1) Model 447 with engine 274
except code ZL3 (National version for Latin
America)
except code ZU7 (National version for Canada)
except code ZU8 (National version for USA)
Model 447 with engine 274
with code ZU7 (National version for Canada)
Model 447 with engine 274
with code ZU8 (National version for USA)
Model 448 with engine 274

18 Remove clamps (10)
19 Loosen clamp (11) INSTALLATION IMPORTANT : Position screw part of the clamp (11) for marking (12) on the air intake pipe (1).
20 Remove air intake pipe (1)
21 Remove sealing ring between air intake pipe (1) and ATL INSTALLATION NOTES :
The sealing ring must first be inserted in the air intake pipe (1) so that crushing of the sealing ring during installation is avoided.
Parts of the crushed sealing ring can otherwise severely damage the ATL.
INSTALLATION IMPORTANT : The sealing ring must be replaced after every removal. The inside diameter of the sealing ring as well as the fitting of the ATL must be wet well with lubricant before assembly.
Lubricant
*BR00.45-Z-1032-06A
22 Remove wide open throttle crankcase ventilation system (2) from the holders (13) Model 447 with engine 274
except code ZL3 (National version for Latin
America)
except code ZU7 (National version for Canada)
except code ZU8 (National version for USA)
Model 447 with engine 274

    with code ZU7 (National version for Canada)
Model 447 with engine 274
with code ZU8 (National version for USA)
Model 448 with engine 274

23 Remove screw (14) TORQUE SPECIFICATION M6 *BA00.10-Z-1002-01KOA
24 Remove circulation pump (23) from holder (24) Model 447 with code H12 (Auxiliary water heater)
Model 447 with code HH9 (Semi-automatic
regulated A/C, TEMPMATIC) Model 447, 448 with code HH4 (AAC THERMOTRONIC) Model 447.7/8 with code H13 (Rear additional heat exchanger) Model 447.7/8, 448 with code HZ7 (Semi-automatic regulated A/C, TEMPMATIC in the rear)
IMPORTANT Do not disconnect electrical connection (25).
Do not remove coolant hoses from the circulation pump (23).

25 Remove wide open throttle crankcase ventilation system (2) together with the air intake pipe (1) and the oil separator (3) upwards IMPORTANT The air intake pipe (1) can only be removed together with wide open throttle crankcase ventilation system (2) and the oil separator (3).
INSTALLATION IMPORTANT : Ensure correct installation position.

26 Install in the reverse order
INSPECT Check
27 Check engine oil level
REFER TO CAPACITIES & SPECIFICATIONS Multigrade engine oils (specification 229.5) Depending on findings
↓
Correct engine oil level.
BB00.40-P-0229-05A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
28 Check for leak tightness with engine running IMPORTANT Visual inspection only.
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number Designation 8.8 10.9
BA00.10-Z-1002-01KOA M6 Galvanized Nm 9 13
Phosphated Nm 9 12
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number Designation 12.9
BA00.10-Z-1002-01KOA M6 Galvanized Nm 16
Phosphated Nm 14
CRANKCASE VENTILATION, CYLINDER HEAD COVER

Number Designation Engine 274
BA01.20-Z-1006-01KOW Bolt, oil separator to crankcase Nm 9
CHARGE AIR DISTRIBUTOR

Number Designation Engine 274 in model 447, 448
BA09.41-Z-1005-01KOV Screw/bolt, housing vent to charge air distributor Nm 8
ALTERNATOR

Number Designation Engine 274 in model 447, 448
BA15.40-Z-1002-01KOX Nut, line to alternator M8 Nm 16
Fig 1: Identifying Hose Clamp Pliers (003 589 03 37 00)
G07300850Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1032-06A Lubricant A 000 989 08 60
