Remove/Install Parktronic System (PTS) Warning Indicator In Rear Passenger Compartment - AR54.65-S-0007E
Model 447, 448
With Code EZ7 (Active Parking Assist)
MODIFICATION NOTES
| 09.03.2017 | Method for model 447 except code ZK7 (MARCO POLO equipment line) changed. | Operation steps 1.1, 3.1, 4, |
Shown on model 447.8 With Code ZK7 (MARCO POLO equipment line)
Shown on Model 447.8 Except Code ZK7 (MARCO POLO equipment line)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

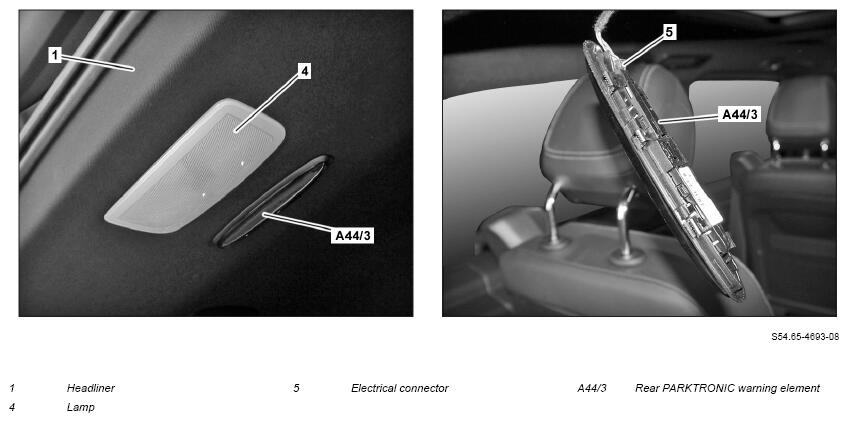

| 1.1 | Remove lamp (4) | Model 447.7/8 except code ZK7 (MARCO POLO equipment line), model 448 | AR82.20-S-0118E |
| 1.2 | Remove rear headliner (1) | Model 447.8 with code ZK7 (MARCO POLO equipment line) | AR68.30-S-7608EE |

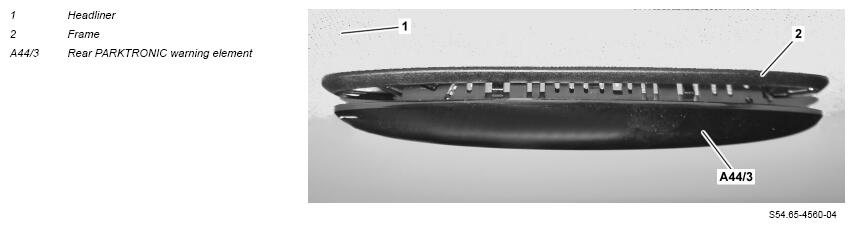

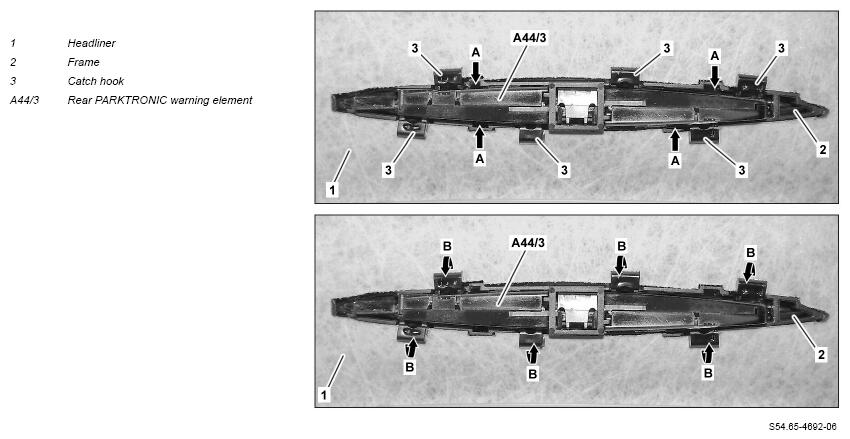

| 2 | Counterhold the frame (2) from below, release catch hooks (arrows A) and push rear PARKTRONIC warning element (A44/3) far enough downwards until the catch hooks (3) can be swiveled inwards (arrows B) | Model 447.8 with code ZK7 (MARCO POLO equipment line) | |
| 3.1 | Unclip frame (2) together with rear PARKTRONIC warning element (A44/3) on catch hooks (3) downwards out of roof lining (1) | Model 447 except code ZK7 (MARCO POLO equipment line), model 448 Carefully unclip. Otherwise the headliner (1) can be damaged. Then insert rear PARKTRONIC warning element (A44/3) together with frame (2) into roof lining (1) and push rear PARKTRONIC warning element (A44/3) upwards and lock into frame (2). |
|
| 3.2 | Press catch hooks (3) together in direction of arrow (arrows B) and unclip frame (2) together with rear PARKTRONIC warning element (A44/3) downwards out of roof lining (1) | Model 447.8 with code ZK7 (MARCO POLO equipment line) | |
| 4 | Disconnect electrical connector (5) and remove rear PARKTRONIC warning element (A44/3) | Model 447 except code ZK7 (MARCO POLO equipment line), model 448 | |
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Perform function check on rear PARKTRONIC warning element (A44/3) |
