Remove/Install Luggage Compartment Lamp - AR82.20-S-0118E

Model 447.7/8, 448

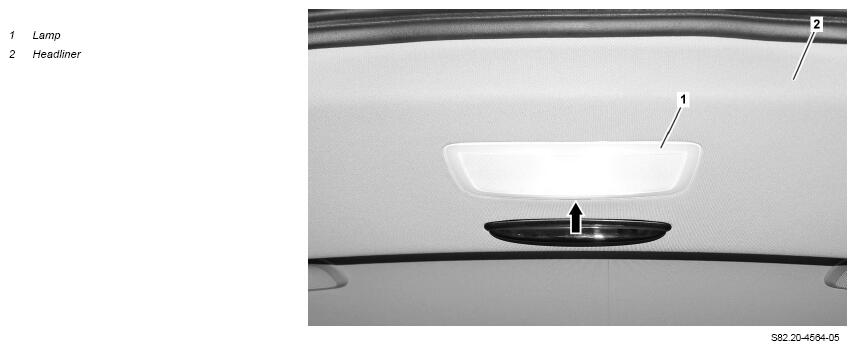

Shown on vehicle With Code W65 (Liftgate)

Courtesy of MERCEDES-BENZ USA

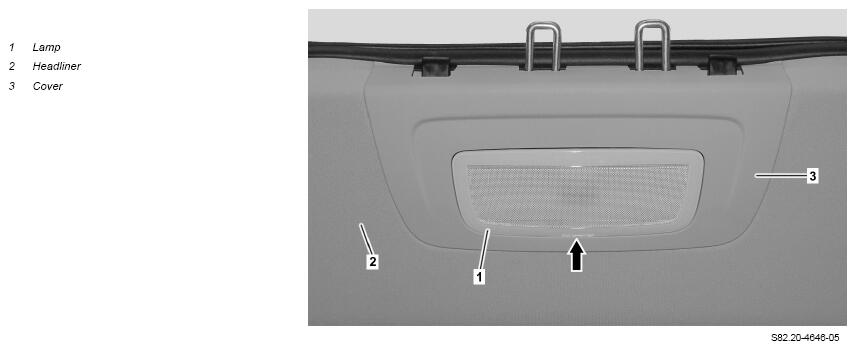

Shown on vehicle With Code W50 (Rear-end door, two-wing, 180 degrees without window)

Courtesy of MERCEDES-BENZ USA

Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1.1	Release lamp (1) in front area (arrow) and remove from headliner (2)	Model 447.7/8, 448 with code W65 (Tailgate) Model 447.8, 448.8 with code W68 (EASY-PACK-tailgate) : Ensure that lamp (1) is seated correctly in headliner (2). Long wedge	Fig 1
1.2	Release lamp (1) in front area (arrow) and remove from cover (3)	Model 447.7 with code W50 (Rear-end door, double-wing, 180 degrees without window) Model 447.7 with code W54 (2-wing rear-end door, 270 degrees) : Ensure that lamp (1) is seated correctly in panel (3). Long wedge	Fig 1
2	Disconnect electrical connector from lamp (1) and remove lamp (1)
3	Install in the reverse order
	Check
4	Perform function test of lamp (1)

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
