Remove/Install 230 V Socket In Right Side Trim In Rear Passenger Compartment - AR54.10-S-0123E
Model 447.7
With Code E3V (External connection 230 V)
With Code ZH6 (Marco Polo ACTIVITY)
Model 447.8
With Code E3V (External connection 230 V)
With Code Z93 (Marco Polo HORIZON)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Remove voltage from 230 V on-board electrical system. | AR54.10-S-0055E | |

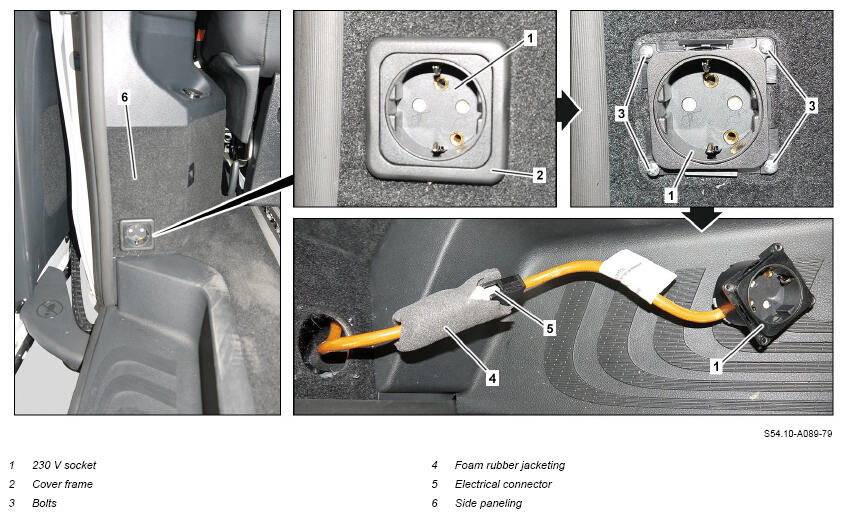

| 2 | Unclip cover frame (2) from 230 V socket (1). | Fig 1 | |
| 3 | Remove screw/bolts (3). | ||
| 4 | Remove 230 V socket (1) from side trim (6) until electrical connector (5) is accessible. | ||
| 5 | Push back foam jacket (4). | ||
| 6 | Release and disconnect electrical connector (5) and remove 230 V socket (1). | ||
| 7 | Install in the reverse order. | ||
| Check | |||
| 8 | Check function of 230 V socket (1). |
