De-energize 230 V On-Board Electrical System/Put 230 V On-Board Electrical System Into Operation - AR54.10-S-0055E
Model 447, 639
Model 906, 907, 910
MODIFICATION NOTES
| 20.12.2021 | SI54.10-S-0075A added. | Step 4 |

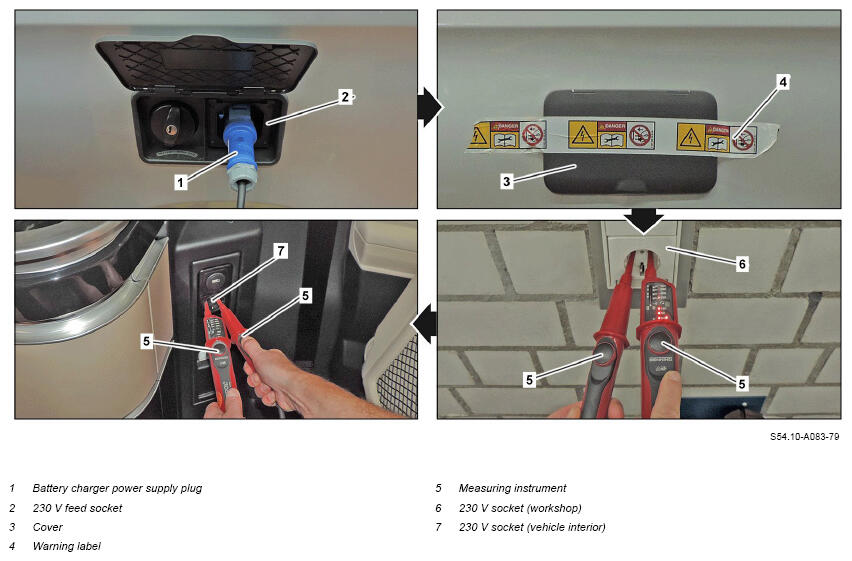

Example illustration on model 447.8
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove voltage | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Detach battery charger power supply plug (1) from 230 V feed socket (2). | If the battery charger power supply plug (1) is connected. | |
| 3 | Close cap (3) and secure connection of battery charger power supply plug (1) against being reconnected with warning sign (4). | Fig 1 | |
| 4 | Check measuring instrument (5) for damage according to manufacturer's specifications and then check for proper operation at a 230 V socket (6) in the workshop. | ||
| Service Information: Repair and diagnostic work on the 230 V system | Model 447.8 with code ZK7 (Equipment line MARCO POLO) Model 639.813 with code ZK7 (Equipment line MARCO POLO) Model 906.633/635/653/655 with code ZO1 (Camper James Cook Compact) Model 906.633/635/653/655 with code ZO2 (Camper James Cook Classic) Model 906.633/635/653/655 with code ZO3 (Camper James Cook Comfort) |
SI54.10-S-0075A | |
| 000 588 07 19 00 Measuring instrument | If there is a problem, ↓ Replace measuring instrument (5). |
WS47.00-Z-0046KOP | |
| 5 | Connect measuring instrument (5) to 230 V socket (7) as shown and check for absence of voltage. | If there is a problem, ↓ Diagnose and eliminate cause. |
|
| Put into operation | |||
| 6 | Remove warning sign (4) from cap (3). | ||
| 7 | Remove adhesive residue from warning sign (4). | If required. Cleaner |
*BR00.45-Z-1025-04A |
| 8 | Connect battery charger power supply plug (1) to 230 V feed socket (2). | If the battery charger power supply plug (1) was connected. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
