Overview Of System Components Of Instrument Cluster (IC) Control Unit - GF54.30-S-9989TRF
Model 447
With Code XM0 (Facelift)
except code ME0 (Electric motor 85 kW)
except code ME4 (Electric motor 145 kW)

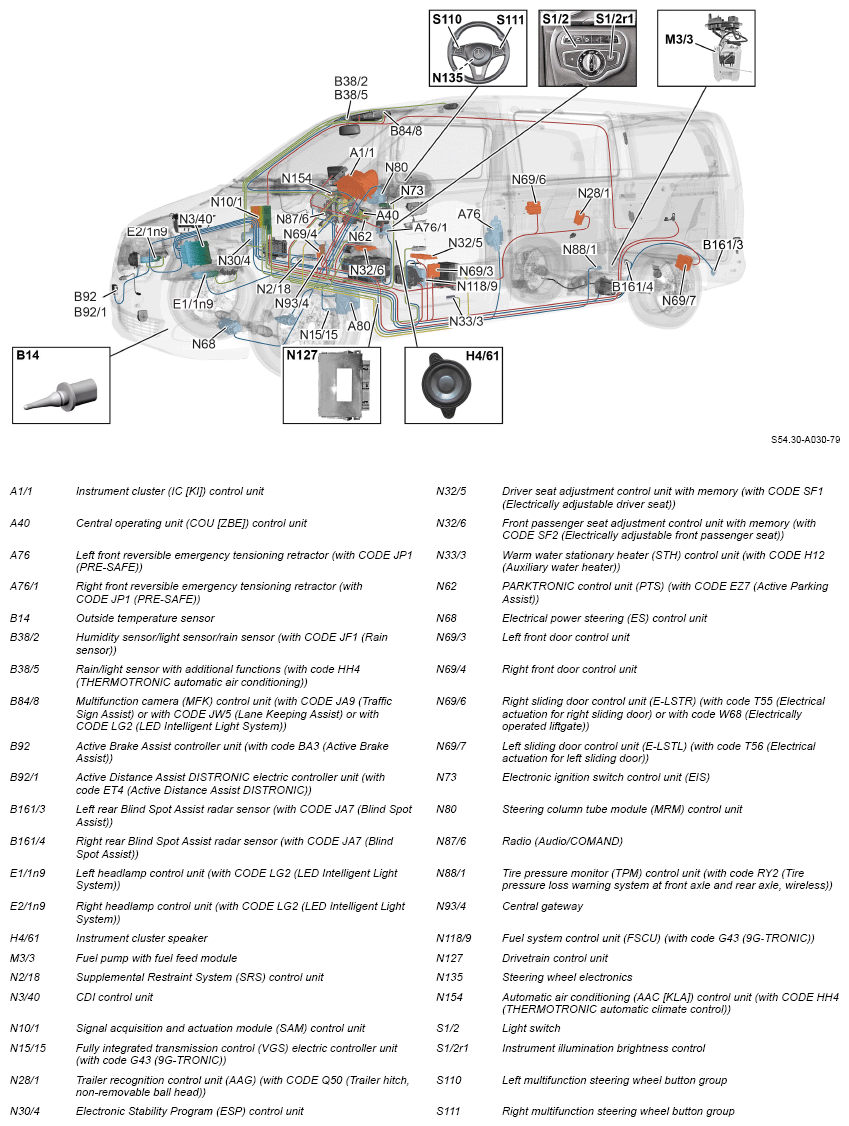

Shown on model 447.8 with engine 654

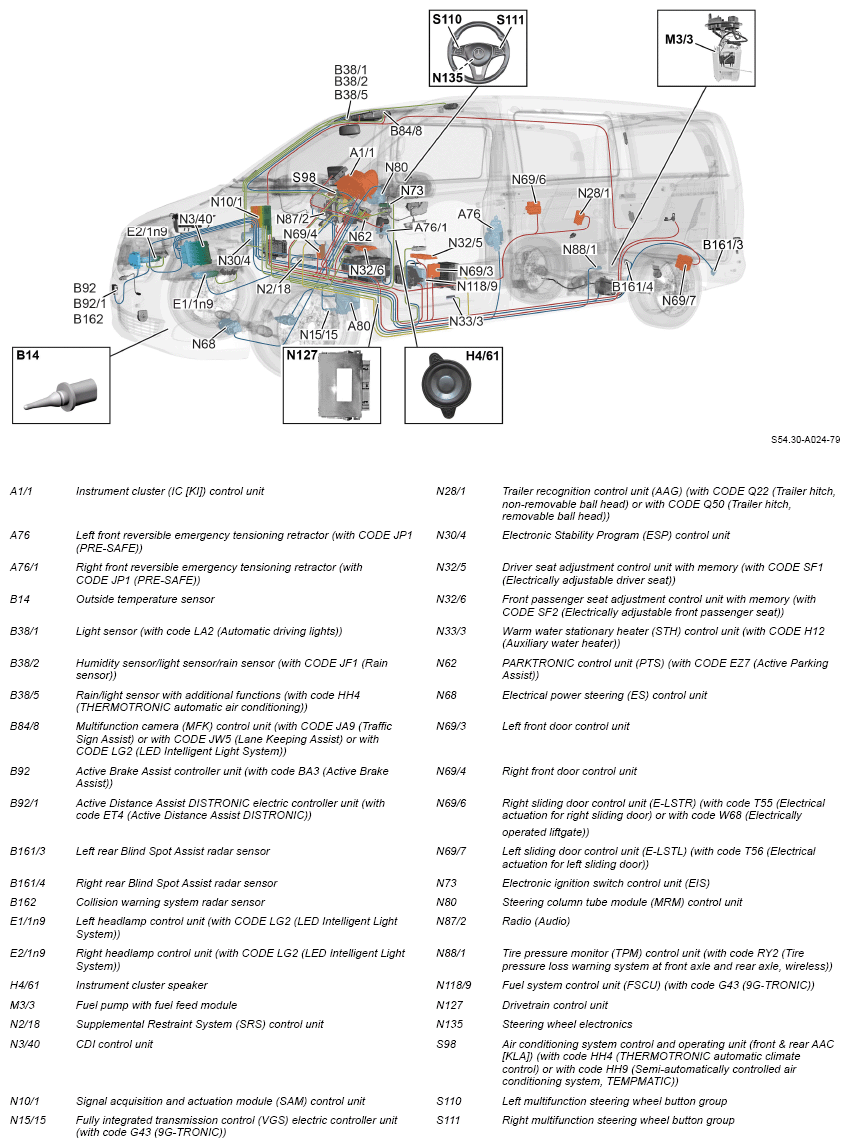

Shown on model 447.6/7 with engine 654
Illustration shows Model 447.8

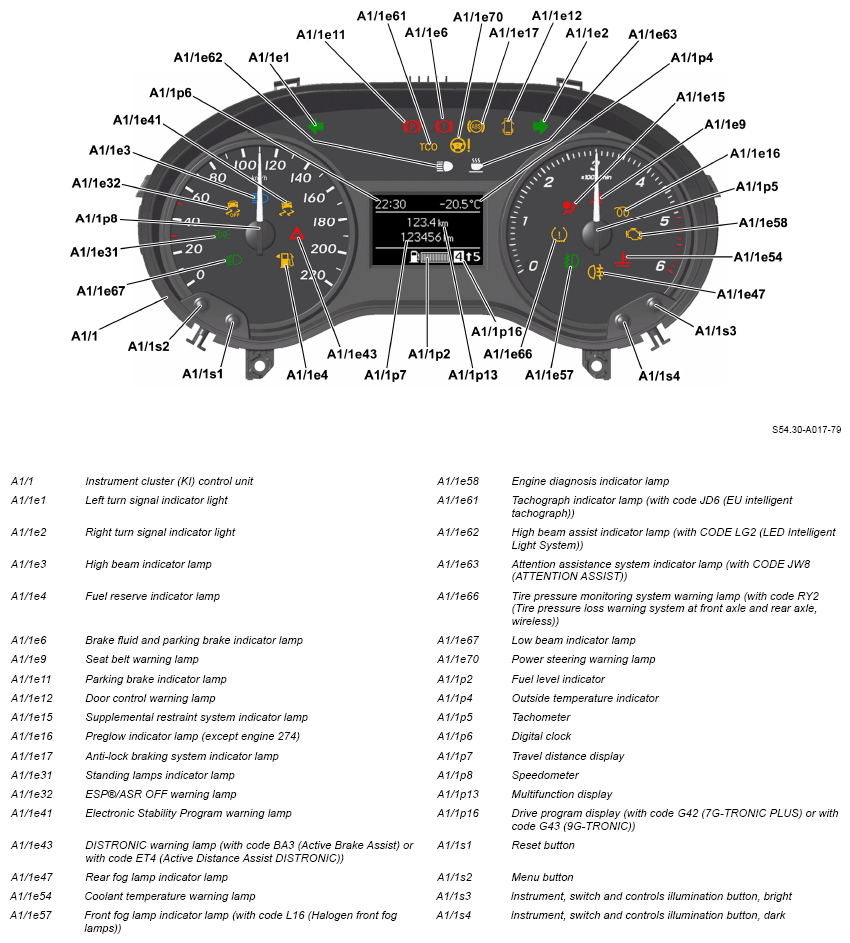

Shown on model 447.6/7 without CODE JK3 (Instrument cluster with pixel-matrix display)

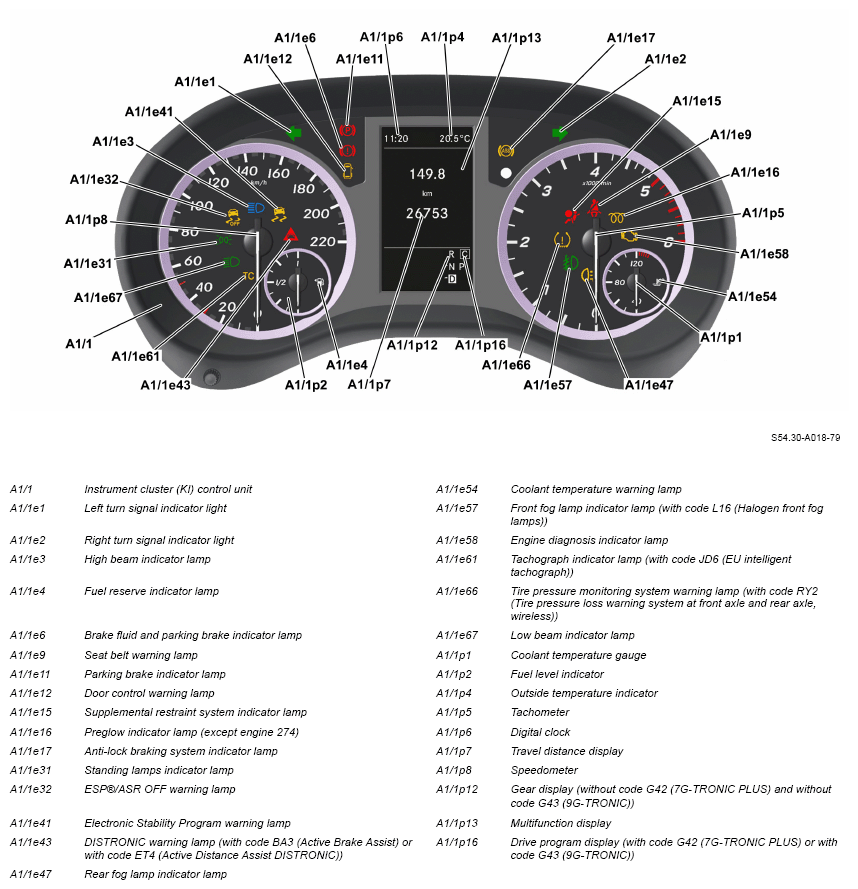

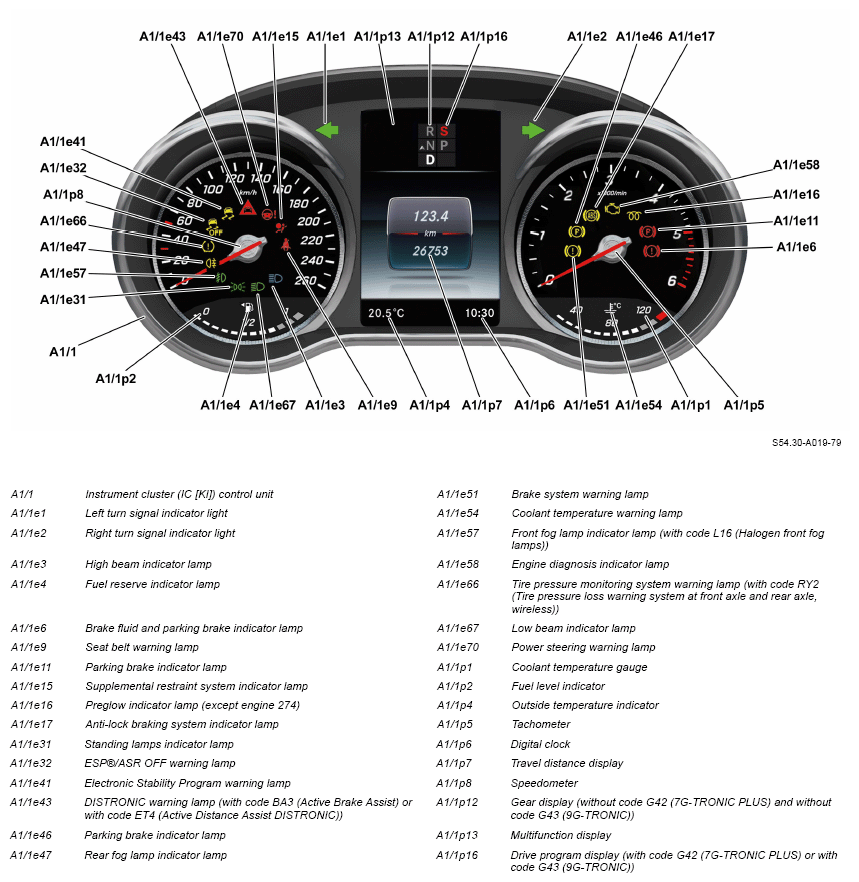

Shown on model 447.6/7 With Code JK3 (Instrument cluster with pixel-matrix display)

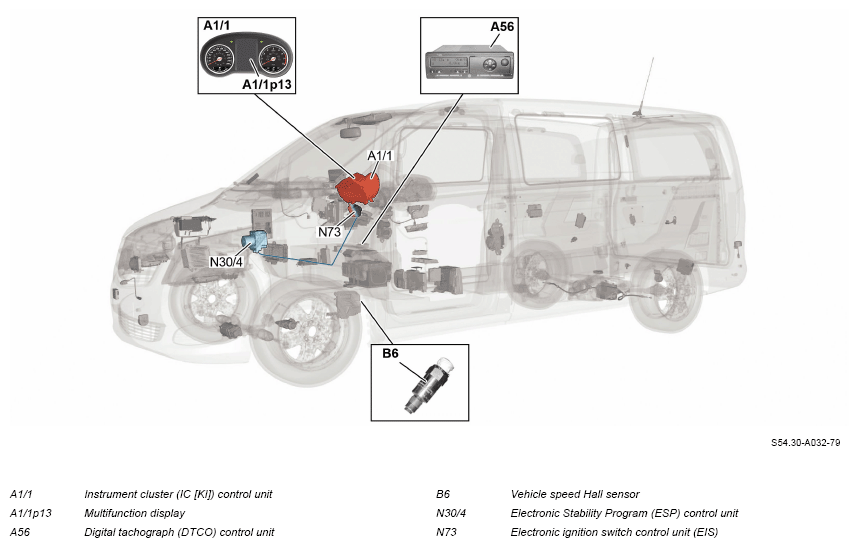

Digital tachograph (DTCO) (model 447.8 With Code JD6 (EU intelligent tachograph))

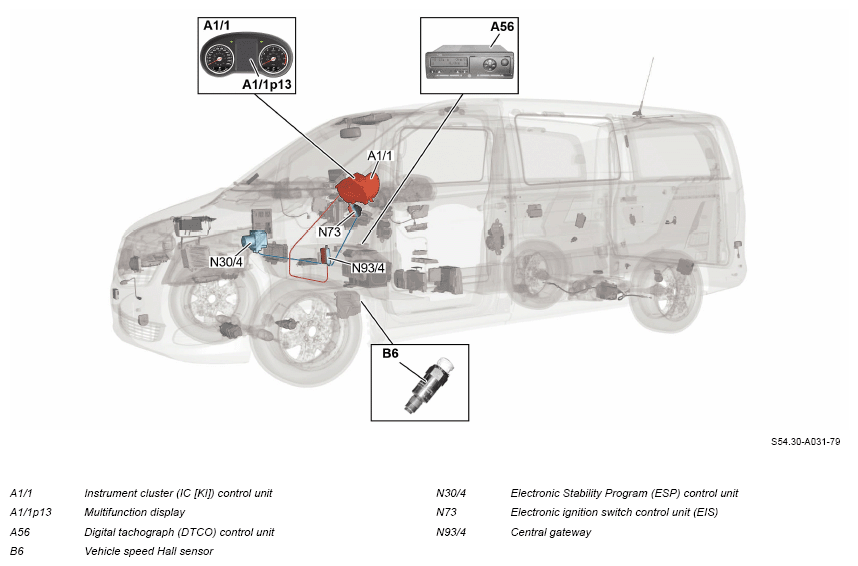

Digital tachograph (DTCO) (model 447.6/7 With Code JD6 (EU intelligent tachograph))
| Instrument cluster (IC) control unit, component description | GF54.30-S-6004TRF | ||
| Table of contents for function description of instrument cluster (IC) | GF54.30-S-0997TRF |
