Remove/Install Wiper System - AR82.30-S-6400E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

Shown On Model 447.8## 1# With Code JF1 (Rain sensor)

Shown On Model 447.8## 2# with engine 654.9

Courtesy of MERCEDES-BENZ USA

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove trim from the center piece in front of the windshield.		AR88.00-S-2792E

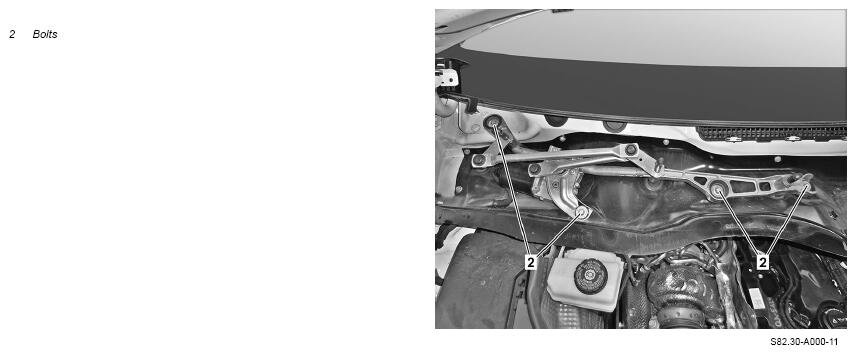

2	Remove screw/bolts (2).	Screw/bolt, wiper linkage to firewall	*BA82.30-Z-1002-01KOJ

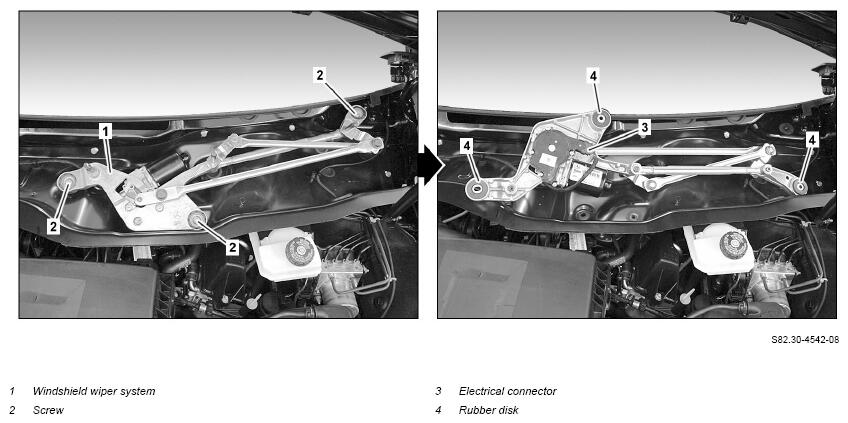

3	Lift and turn over windshield wiper system (1).
4	Disconnect electrical connector (3).
5	Remove windshield wiper system (1).	Remove any remaining rubber disks (4) from body and attach to windshield wiper system (1).
6	Install in the reverse order.
	Check
7	Perform function check of windshield wiper system (1).
