Remove/Install USB/AUX Connection In Instrument Panel - AR82.60-S-1040E
Model 447.6/7, 448.7 Except Code XM7 (MOPF II)
| Remove/install | |||
| 1 | Remove center instrument panel cover | AR68.10-S-3430E | |

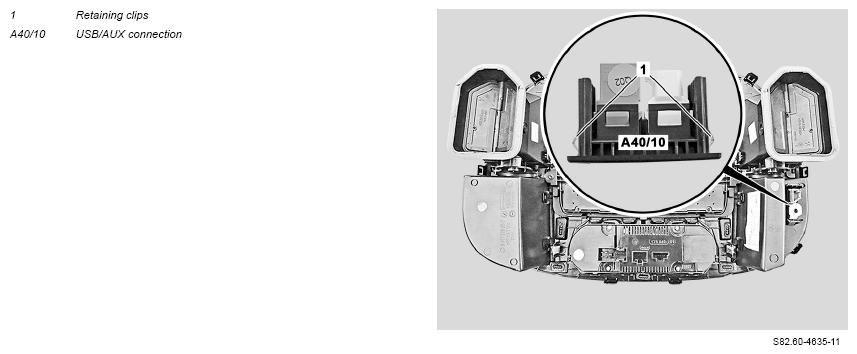

| 2 | Release retaining clamps (1), disconnect electrical connectors and remove USB/AUX connection (A40/10) | ||
| 3 | Install in the reverse order. | ||
| Check | |||
| 4 | Carry out function test of USB/AUX connection (A40/10) |
