Remove/Install USB Port In Right Side Trim In Rear Passenger Compartment - AR82.60-S-0009E
Model 447.7/8
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

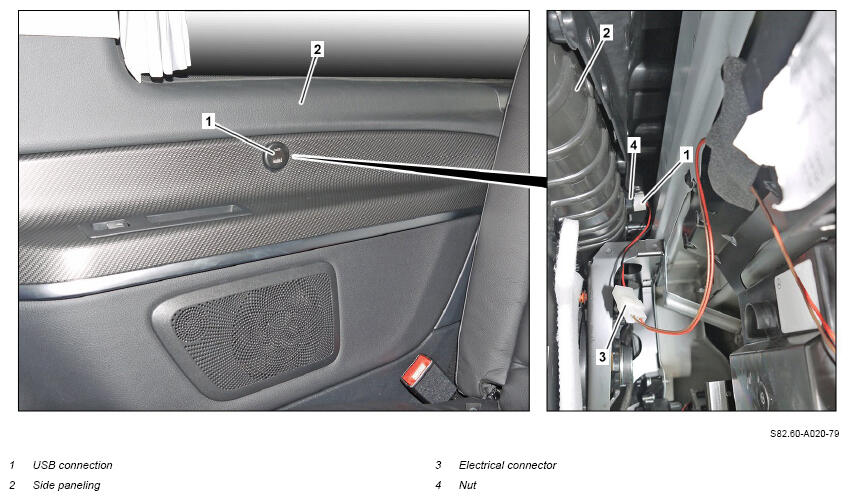

| 1 | Release side trim (2) in rear passenger compartment until nut (4) is accessible. | Model 447.7 with code E3V (External connection 230 V) with code ZH6 (Marco Polo ACTIVITY) Model 447.8 with code E3V (External connection 230 V) with code Z93 (Marco Polo HORIZON) |
AR68.30-S-1187E |
| 2 | Disconnect electrical connector (3). | ||
| 3 | Remove nut (4). | ||
| 4 | Detach USB port (1) from side trim (2) and remove. | ||
| 5 | Install in the reverse order. | ||
| Check | |||
| 6 | Carry out function test for USB port (1). |
