Remove/Install USB Port In Center Front Trim - AR82.60-S-0100EH
Model 447.6/7, 448.7 With Code XM7 (MOPF II)

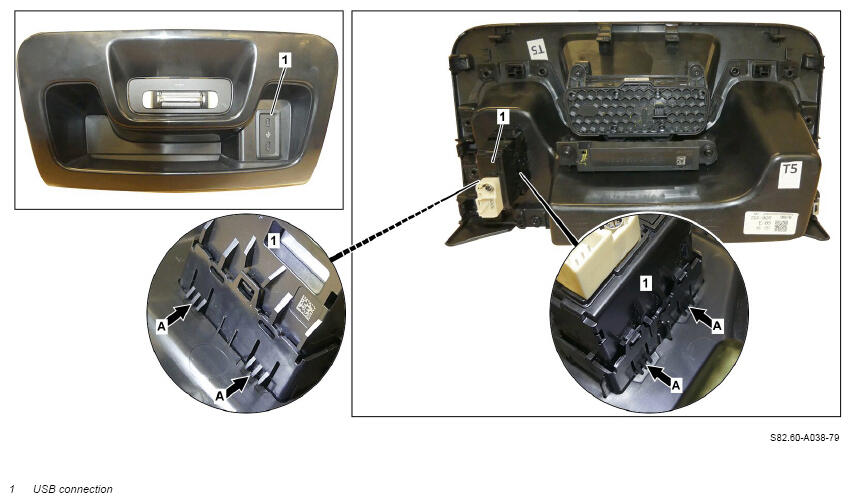

Shown On Model 447.7 With Code G43 (9G-TRONIC) and With Code CA4 (AIRMATIC)

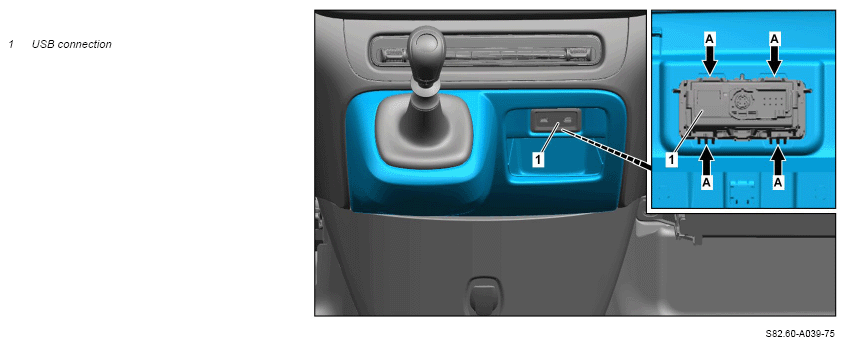

Shown On Model 447.7 With Code GE1 (6-speed manual transmission TSG 380)
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447.6/7 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove trim at bottom for center instrument panel. | AR68.10-S-1498EH | |
| 3 | Remove USB port (1). | ||
| 4 | Install in the reverse order. | ||
| Check | |||
| 5 | Carry out function test for USB port (1). |
