Remove/Install Tail Lamp - AR82.10-S-4905E

Model 447, 448

MODIFICATION NOTES

9.6.15

Method extended

Operation step 2

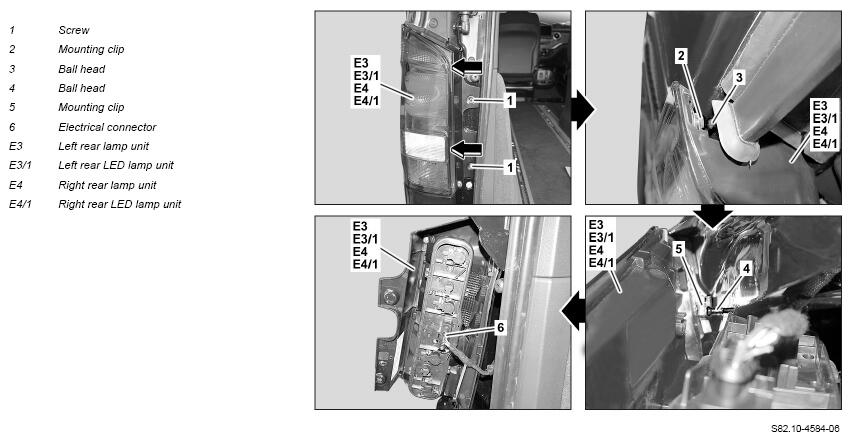

Shown On Model 447.8

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove bolts (1)
2	First unclip left rear lamp unit (E3) or left rear LED lamp unit (E3/1) or right rear lamp unit (E4) or right rear LED lamp unit (E4/1) at top from ball head (3) and then at bottom from ball head (4)	Carefully unclip left rear lamp unit (E3) or left rear LED lamp unit (E3/1) or right rear lamp unit (E4) or right rear LED lamp unit (E4/1). Otherwise there is a risk of breakage of left rear lamp unit (E3) or left rear LED lamp unit (E3/1) or right rear lamp unit (E4) or right rear LED lamp unit (E4/1). Ensure that retaining clips (2, 5) are correctly seated in the associated ball heads (3, 4).
		Clip remover If the sidewall paneling has already been replaced and the left rear LED lamp unit (E3/1) or the right rear LED lamp unit (E4/1) therefore cannot be unclipped in that manner. ↓ Remove left rear LED lamp unit (E3/1) or right rear LED lamp unit (E4/1)	Fig 1
		Model 447, 448 with code LG4 (Taillights, brake lights and turn signal light in LED technology)	AR82.10-S-4905-01E
3	Disconnect electrical connector (6)
4	Install in the reverse order
	Check
5	Carry out function check for left rear lamp unit (E3) or left rear LED lamp unit (E3/1) or right rear lamp unit (E4) or right rear LED lamp unit (E4/1)

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
