Remove/Install Rear-End Door Wiper Motor - AR82.30-S-6551E
Model 447.6/7
Shown on right rear-end door
| Remove/install | |||
| 1 | Remove rear window wiper from respective rear-end door | Model 447.6/7 with code W50 (Rear-end door, double-wing, 180 degrees without window) with code W78 (Window in tailgate or hinged rear door with wipe/wash system) Model 447.6/7 with code W54 (2-wing rear-end door, 270 degrees) with code W78 (Window in tailgate or hinged rear door with wipe/wash system) |
AR82.30-S-6980EE |
| 2 | Remove door foil from respective rear-end door until left rear-end door wiper motor (M6/10) or right rear-end door wiper motor (M6/11) is accessible | AR72.20-S-4100E | |

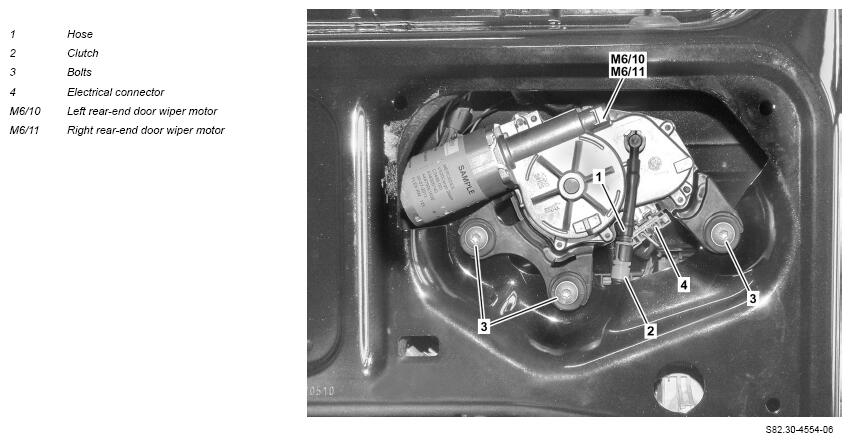

| 3 | Disconnect hose (1) from coupling (2) | ||
| 4 | Disconnect electrical connection (4) | ||
| 5 | Remove bolts (3) | *BA72.20-Z-1006-01KOJ | |
| 6 | Remove left rear-end door wiper motor (M6/10) or right rear-end door wiper motor (M6/11) | ||
| 7 | Install in the reverse order |
REAR-END DOOR
| Number | Designation | Model 447.6/7 with code W54 | Model 447.6/7 with code W50 | |
|---|---|---|---|---|
| BA72.20-Z-1006-01KOJ | Bolt of wiper motor to rear-end door | Nm | 8 | 8 |
