Remove/Install Rear Grab Handle Interior Lamp - AR82.20-S-1222E

Model 447.7/8, 448

With Code LC6 (Illum. in rear grab handle with reading spotlight)

Model 447.7/8

With Code LC3 (Illumination in rear grab handle)

Courtesy of MERCEDES-BENZ USA

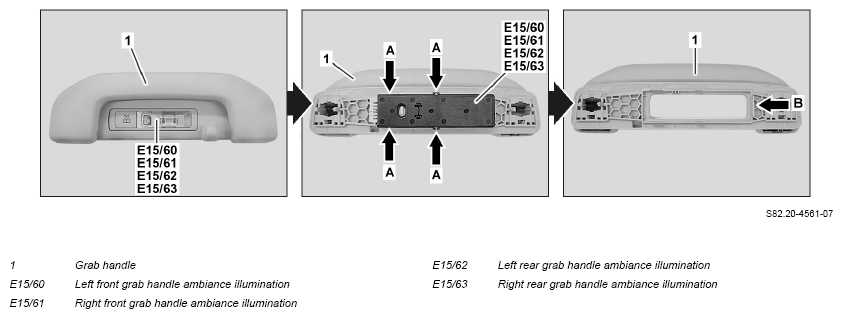

Shown With Code LC6 (Illumination in rear grab handle with reading spotlight)

Courtesy of MERCEDES-BENZ USA

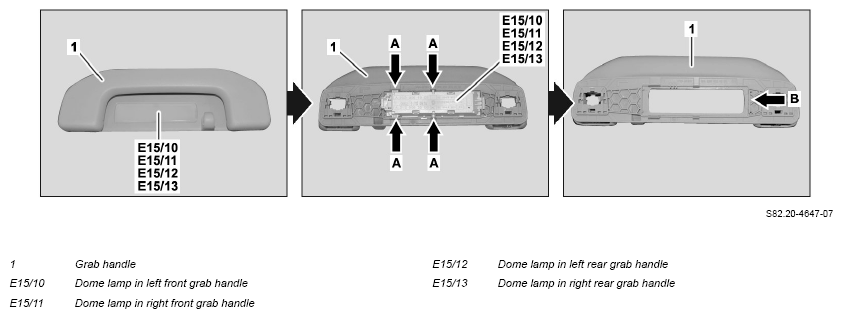

Shown With Code LC3 (Illumination in rear grab handle)

Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove grab handle (1) from roof		AR68.30-S-4330E
2.1	Unclip dome lamp in grab handle (E15/10, E15/11, E15/12 or E15/13) at the latches (arrows A) and remove	Model 447.7/8 with code LC3 (Illumination in rear grab handle) : Ensure correct seating of dome lamp in grab handle (E15/10, E15/11, E15/12 or E15/13) in bracket (arrow B) and the latches (arrows A).
2.2	Unclip grab handle ambiance illumination (E15/60, E15/61, E15/62 or E15/63) at latches (arrows A) and remove	Model 447.7/8, 448 with code LC6 (Illum. in rear grab handle with reading spotlight) : Ensure that grab handle ambiance illumination (E15/60, E15/61, E15/62 or E15/63) is seated correctly in bracket (arrow B) and catches (arrows A).
3	Install in the reverse order
	Check
4	Perform function test of grab handle ambiance illumination (E15/60, E15/61, E15/62 or E15/63) or the dome lamp in the grab handle (E15/10, E15/11, E15/12 or E15/13)
