Remove/Install Handle On Roof - AR68.30-S-4330E
Model 447, 448
Shown On model 447.8 With Code LC6 (Illumination in rear grab handle with reading spotlight)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

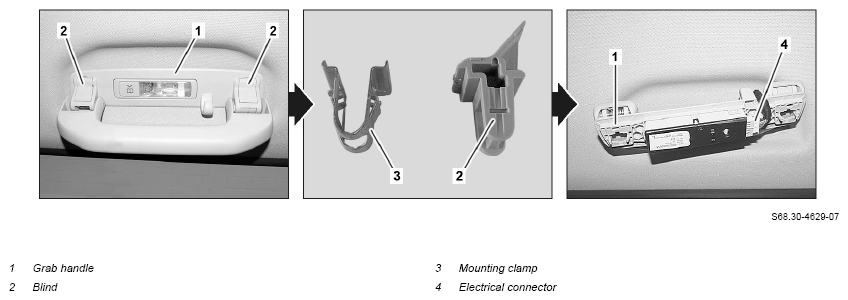

| 1 | Fold down grab handle (1) and hold | ||
| 2 | Unclip covers (2) using a suitable screwdriver, and remove | ||
| 3 | Unclip mounting clips (3) | If mounting clips (3) are damaged ↓ Replace mounting clips (3) |
|
| 4.1 | Remove grab handle (1) from headliner | Model 447 except code LC3 (Illumination in rear grab handle) except code LC6 (Illum. in rear grab handle with reading spotlight) Model 448 except code LC6 (Illum. in rear grab handle with reading spotlight) |
|
| 4.2 | Pull grab handle (1) out of headliner until electrical connector (4) is accessible | Model 447.7/8, 448 with code LC6 (Illum. in rear grab handle with reading spotlight) Model 447.7/8 with code LC3 (Illumination in rear grab handle) |
|
| 5 | Disconnect electrical connector (4) and remove grab handle (1) | Model 447.7/8, 448 with code LC6 (Illum. in rear grab handle with reading spotlight) Model 447.7/8 with code LC3 (Illumination in rear grab handle) |
|
| 6 | Remove lamp in grab handle (1) | Model 447.7/8, 448 with code LC6 (Illum. in rear grab handle with reading spotlight) Model 447.7/8 with code LC3 (Illumination in rear grab handle) When replacing grab handle (1). |
AR82.20-S-1222E |
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check illumination in grab handle (1) for proper function | Model 447.7/8, 448 with code LC6 (Illum. in rear grab handle with reading spotlight) Model 447.7/8 with code LC3 (Illumination in rear grab handle) |
