Remove/Install Headlamp Unit Holder - AR82.10-S-4740E
Model 447
Model 448
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Remove left front lamp unit or right front lamp unit | AR82.10-S-4730E | |

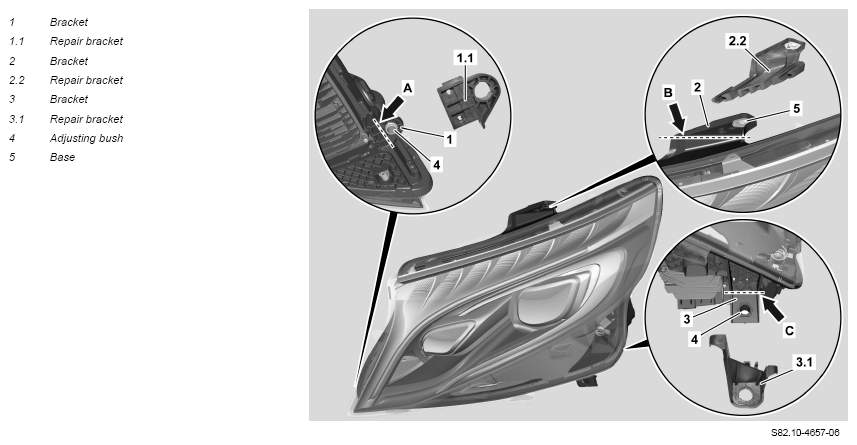

| 2 | Determine and note height of adjusting bushes (4) | ||
| 3 | Remove adjusting bushes (4) from left front lamp unit or right front lamp unit | ||
| 4 | Remove base (5) from bracket (2) | ||
| 5 | Cut off bracket (1, 2, 3) at the predetermined separating points (arrows A, B, C) | ||
| 6 | Clean and deburr separating points (arrows A, B, C) on left front lamp unit or right front lamp unit | ||
| Install | |||
| 7 | Screw adjusting bushes (4) into the repair new brackets (1.1, 3.1) | ||
| 8 | Attach base (5) to repair bracket (2.2) | ||
| 9 | Set adjusting bushes (4) to the previously determined height | ||
| 10 | Position and screw repair bracket (1.1, 2.2, 3.1) to left front lamp unit and right front lamp unit | ||
| 11 | Install left front lamp unit or right front lamp unit | AR82.10-S-4730E |
