Remove/Install Fog Lamps - AR82.10-S-1835E

Model 447.6/7

With Code L16 (Fog lamps Halogen)

Model 448.7

Courtesy of MERCEDES-BENZ USA

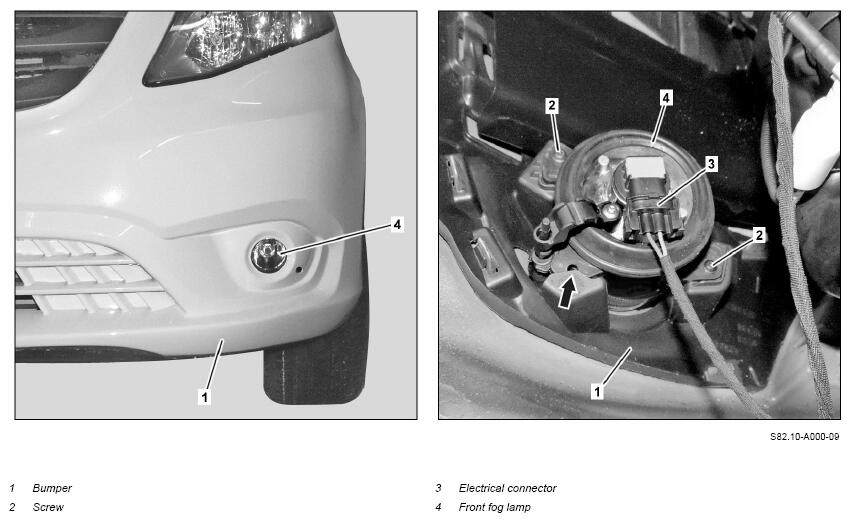

Shown on left front fog lamp (4)

	Remove/install
1	Loosen left or right front fender liner until the front fog lamp (4) is accessible.	Fasten left or right front fender liner only after the function test for the front fog lamps (4).	AR88.10-S-1300E
2	Disconnect electrical connector (3).
3	Unscrew bolts (2).
4	Remove front fog lamp (4) from bumper (1).	Ensure that the front fog lamp (4) is at the correct assembly position (arrow) on the bumper (1).
5	Install in the reverse order
	Check
6	Perform function test on both front fog lamps (4).
7	Adjust both front fog lamps (4).		AR82.10-S-1132E
