Remove/Install Fan For Headlamp Unit - AR82.10-S-4742E
Model 447, 448

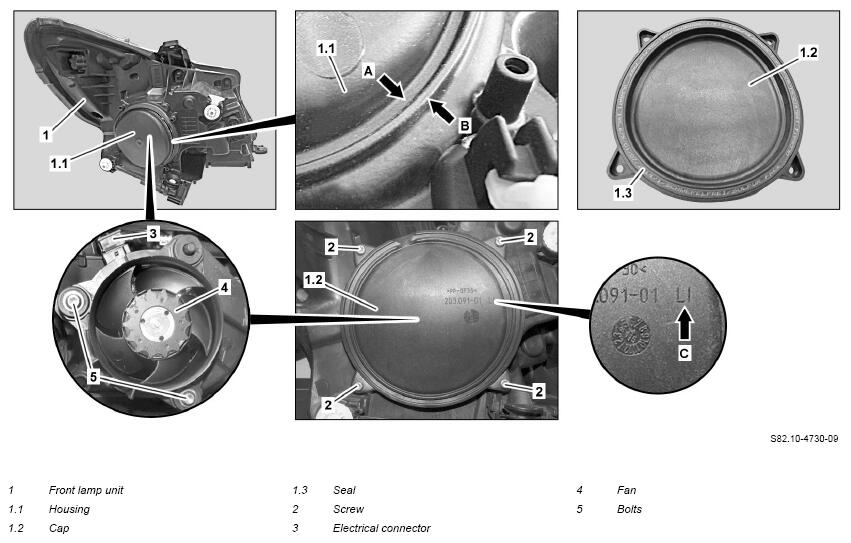

Shown on front left lamp unit (1)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove | |||
| 1 | Remove front lamp unit (1) | AR82.10-S-4730E | |
| Risk of injury caused by burns to skin and eyes, risk of poisoning caused by inhaling vapors when working with plastics | Wear protective gloves and safety glasses. Ensure that the work area is adequately ventilated. | AS00.00-Z-0001-02A | |
| 2.1 | Use hot knife to cut open housing (1.1) on front lamp unit (1) within the groove (arrow A) | If cap (1.2) is not installed. | |
| 000 588 14 84 00 Hot knife | WS82.00-P-0048B | ||
| 2.2 | Unscrew bolts (2) and remove cap (1.2) | If cap (1.2) is installed. | |
| 3 | Deburr cut surface on front lamp unit (1) | If necessary, after cutting open housing (1.1). Soiling in the front lamp unit (1) may cause malfunctions. |
|
| 4 | Remove screws/bolts (5) | ||
| 5 | Remove fan (4) far enough from front lamp unit (1) to gain access to the electrical connector (3) | ||
| 6 | Disconnect electrical connector (3) and remove fan (4) | ||
| Install | |||
| 7 | Connect electrical connector (3) to fan (4) | ||
| 8 | Insert fan (4) into front lamp unit (1) | ||
| 9 | Screw bolts (5) tight | ||
| 10 | Insert seal (1.3) with inscription facing upwards into the cap (1.2) | For first time installation of cap (1.2). |
|
| 11 | Position cap (1.2) on front lamp unit (1) and tighten bolts (2) | ||
| 12 | Install front lamp unit (1) | AR82.10-S-4730E |
