Remove/Install Driver Camera - AR82.90-S-1151EH
Model 447, 448 With Code JK8 (Driver camera) With Code XM7 (MOPF II)
Shown On Model 447.8
Shown On Model 447.8
Shown On Model 447.7
Shown On Model 447.7
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

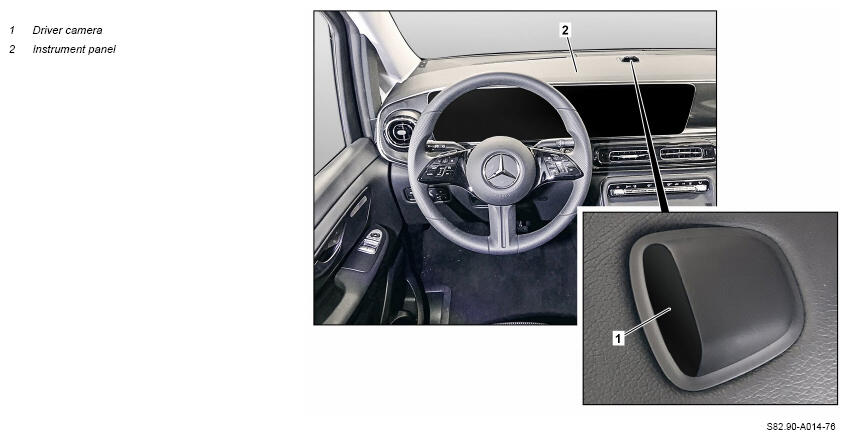

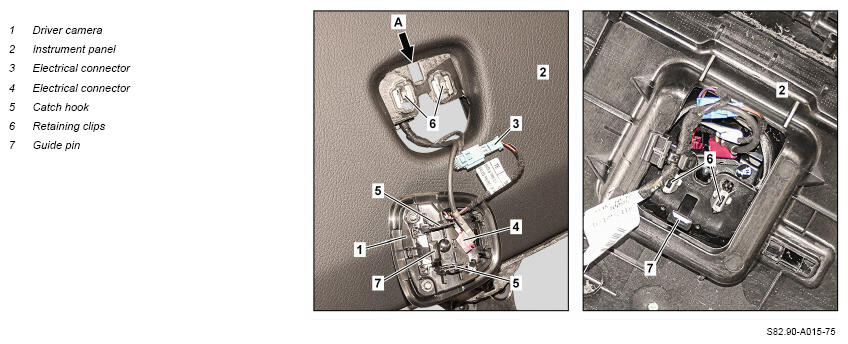

| 2.1 | Remove driver camera (1) from instrument panel (2). | Model 447.8, 448.8 |
|
If damage is present, ↓ Replace damaged retaining clamps (6). |
Fig 2 | ||
| 2.2 | Remove radio display. | Model 447.6/7, 448.7 | AR82.60-S-7722EI |

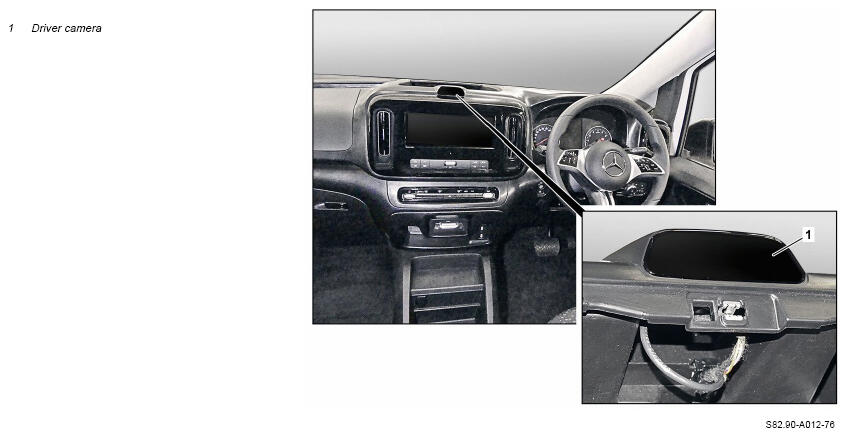

| 3 | Remove driver camera (1). | Model 447.6/7, 448.7 |
|
If damage is present, ↓ Replace driver camera (1). |
Fig 2 | ||

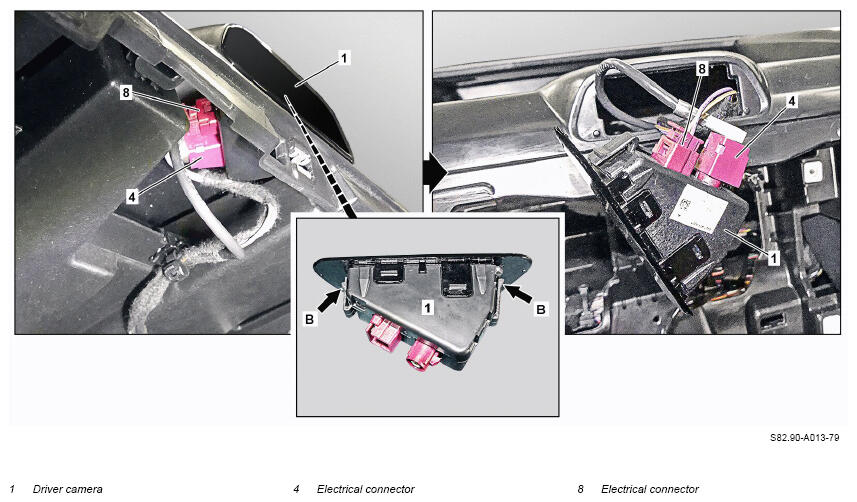

| 4 | Remove driver camera (1). | To do so, release and disconnect electrical connectors (3, 4). To do so, release and disconnect electrical connectors (4, 8). |
|
| 5 | Install in the reverse order. | ||
| Check | |||
| 6 | Perform function test of driver camera (1). |
