Remove/Install Communication Module Antenna - AR82.62-S-0031EH
Model 447.6/7 With Code JH6 (Pre-installation for communications module for digital services (LTE)) With Code XM7 (MOPF II)
Model 447 With Code JH3 (Communication module (LTE) for digital services) With Code XM7 (MOPF II)
Shown On Model 447.8
Shown On Model 447.8

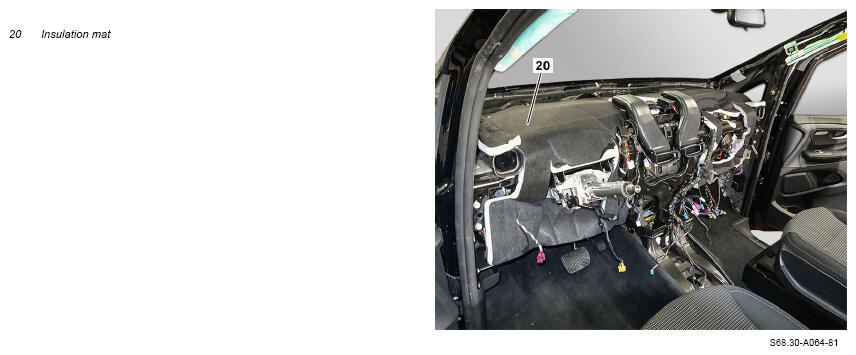

| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Remove instrument panel. | Model 447.8 | AR68.10-S-1000EH |
| Model 447.6/7 | AR68.10-S-1000EI | ||
| 2 | Remove insulation mat (20) from front passenger side in area of antenna (1). | ||
| 3 | Release and disconnect electrical connection (3). | ||

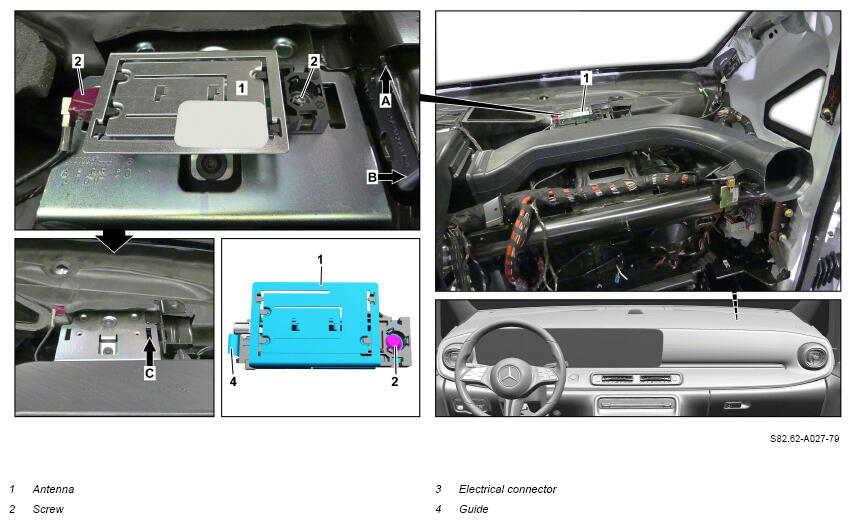

| 4 | Remove screw (2) and remove antenna (1). | ||
| 5 | Lift antenna (1) in direction of arrow (arrow A), move out guide (4) in direction of arrow (arrow B) and remove antenna (1). | ||
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Perform function test of antenna (1). |
