Remove/Install Button Groups On Multifunction Steering Wheel - AR82.90-S-0014E
Model 447, 448 Except Code XM7 (MOPF II)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

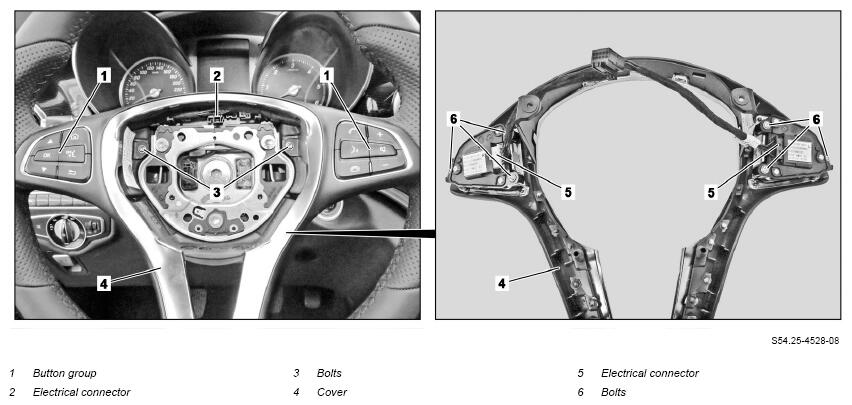

| 1 | Remove airbag from steering wheel. | AR91.60-S-0660E | |
| 2 | Release and disconnect electrical connector (2). | ||
| 3 | Tighten screws (3). | ||
| 4 | Remove cover (4). | ||
| 5 | Disconnect electrical connectors (5) of button groups (1). | ||
| 6 | Remove screws (6) of button groups (1). | ||
| 7 | Remove button groups (1) from cover (4). | ||
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Perform function test of button functions of button groups (1). |
