Remove/Install Bulbs Of Front Dome Lamp - AR82.20-S-5602E

Model 447.6/7

Except Code LC4 (Comfort overhead control panel)

Except Code LD0 (Overhead control panel with two reading lights)

Courtesy of MERCEDES-BENZ USA

Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Unclip dome lamp, front of rear (E15/3)	Do not disconnect electrical connectors for the dome lamp, front of rear (E15/3).	AR82.20-S-0110E

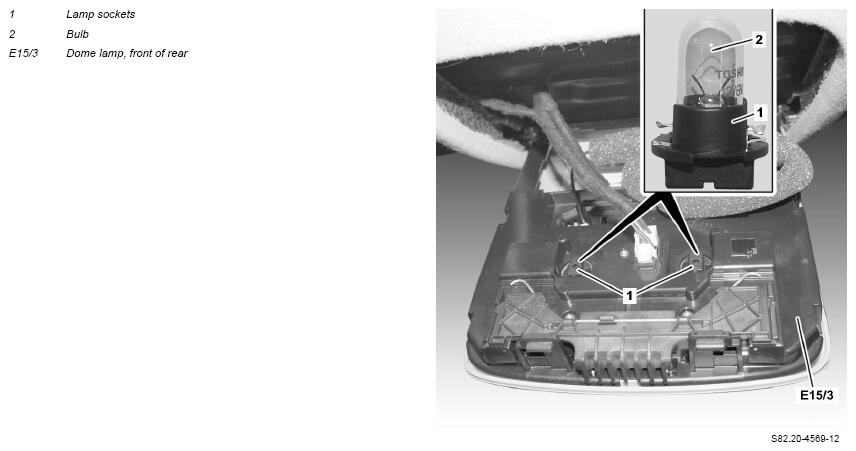

2	Twist lamp sockets (1) 90 degrees counterclockwise and remove
3	Pull bulbs (2) out of the lamp sockets (1)	Do not touch the bulbs (2) with bare fingers. Use a grease-free, soft cloth and ensure correct seating in the lamp sockets (1).
4	Install in the reverse order
	Check
5	Perform a function check of the dome lamp, front of rear (E15/3)
