Remove/Install Bulb Of Luggage Compartment Lamp - AR82.20-S-5609E
Model 447.7/8, 448
| Remove/install | |||

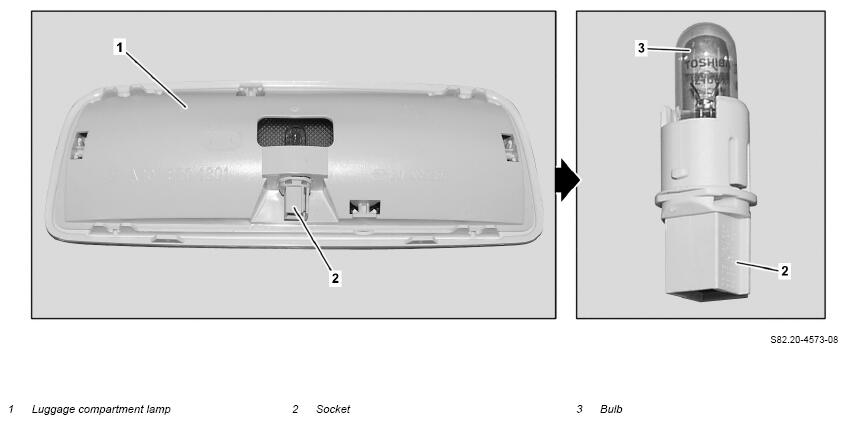

| 1 | Remove trunk lamp (1) | AR82.20-S-0118E | |
| 2 | Rotate socket (2) approx. 30° counterclockwise and remove | ||
| 3 | Pull bulb (3) out of socket (2) | Do not touch the glass bulb with bare fingers; use a soft cloth free of oil and grease. Otherwise, the glass bulb will be damaged in operation. |
|
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Perform function check of trunk lamp (1) |
