Remove/Install Bulb In Dome Lamp In Load Compartment - AR82.20-S-5617E

Model 447.6/7

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove dome lamp in load compartment (1)		AR82.20-S-5615E

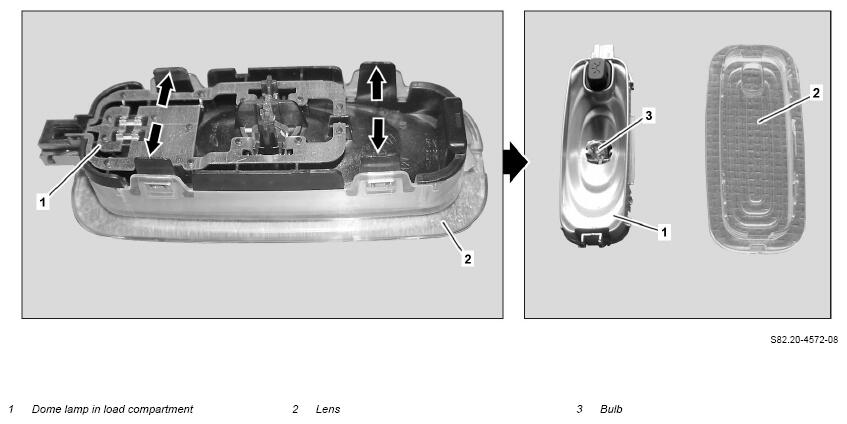

2	Release catches (arrows) and remove lens (2) from the dome lamp in the load compartment (1)
3	Remove bulb (3)	Do not touch the bulb (3) with bare fingers. Use a grease-free, soft cloth and ensure correct seating in the dome lamp in the load compartment (1).
4	Install in the reverse order
	Check
5	Perform function check of dome lamp in load compartment (1)
