Remove/Install Dome Lamp In Load Compartment - AR82.20-S-5615E
Model 447.6/7
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

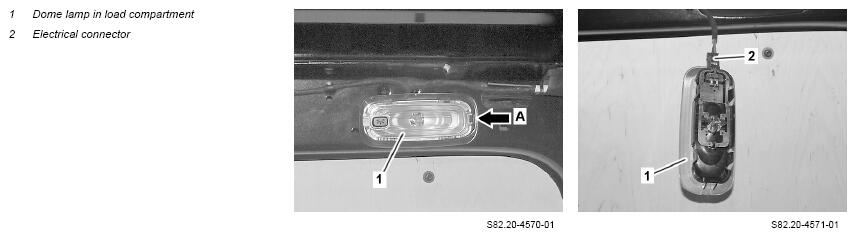

| 1 | Use suitable tool in front area (arrow A) to release catch of dome lamp in load compartment (1) and remove dome lamp in load compartment (1) until the electrical connector (2) is accessible | ||
| 2 | Disconnect electrical connector (2) and remove dome lamp in load compartment (1) | ||
| 3 | Install in the reverse order | ||
| Check | |||
| 4 | Perform function check of dome lamp in load compartment (1) |
