Remove/Install Antenna Amplifier Module - AR82.62-S-8300E
Model 447
Model 448
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

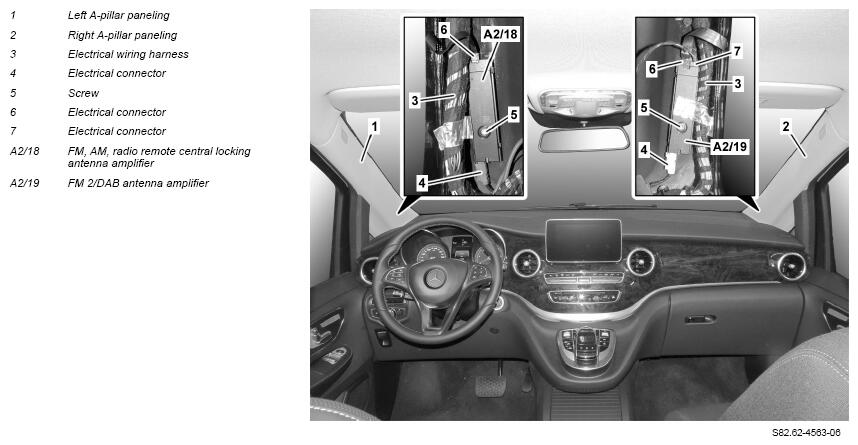

| 2 | Remove left A-pillar trim (1). | When removing FM, AM, radio remote central locking antenna amplifier (A2/18). | AR68.30-S-4050E |
| 3 | Remove right A-pillar trim (2). | When removing FM 2, DAB antenna amplifier (A2/19). | AR68.30-S-4050E |
| 4 | Expose electrical wiring harness (3) in area of FM, AM, radio remote central locking antenna amplifier (A2/18) or FM 2, DAB antenna amplifier (A2/19). | ||
| 5 | Remove screw (5). | ||
| 6 | Disconnect electrical connectors (4, 6) and remove FM, AM, radio remote central locking antenna amplifier (A2/18). | When removing FM, AM, radio remote central locking antenna amplifier (A2/18). | |
| 7 | Disconnect electrical connectors (4, 6, 7) and remove FM 2, DAB antenna amplifier (A2/19). | When removing FM 2, DAB antenna amplifier (A2/19). | |
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Perform function test on corresponding systems. |
