(Remove/Install Front Sound Generator External Speaker - AR82.27-S-0006E)
Model 447.6
With Code J2A (Acoustic ambient protection)
With Code M8E (Electric motor 85 kW/battery 60 kWh (usable))
Model 447.8
With Code J2A (Acoustic ambient protection)
With Code ME4 (Electric motor 145 kW)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

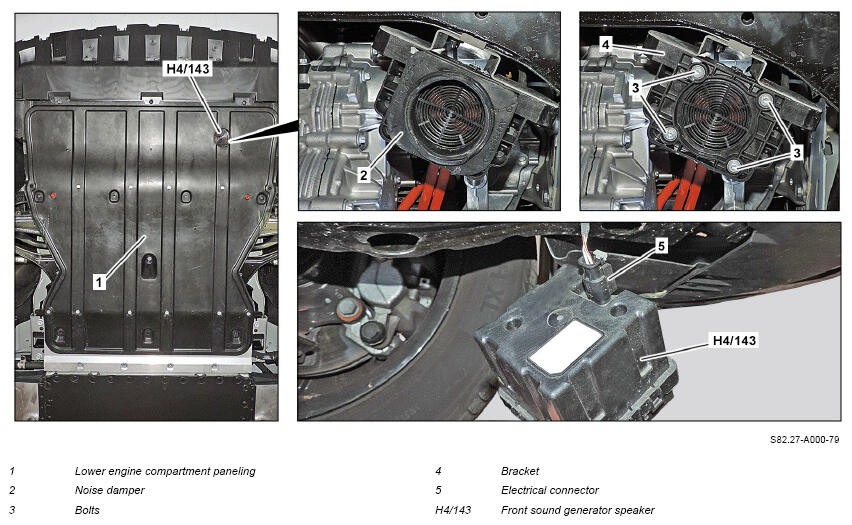

| 1 | Remove lower engine compartment lining (1). | AR61.20-S-1105E | |
| 2 | Remove noise damper (2). | ||
| 3 | Unscrew screws (3) and remove front sound generator speaker (H4/143) from holder (4). | ||
| 4 | Release and disconnect electrical connector (5). | ||
| 5 | Install in the reverse order. | ||
| 6 | Commission front sound generator speaker (H4/143). | If front sound generator speaker (H4/143) was replaced. | |
| AD00.00-S-2000-04E | |||
| Check | |||
| 7 | Perform function test of front sound generator speaker (H4/143). |
