Speaker Output Function - GF82.62-S-4212TRA
Model 447.6
With Code EL8 (2-way loudspeakers, front)
Except Code XM0 (Facelift)
Model 447.7
Except Code XM0 (Facelift)
Shown On Model 447.6 With Code EL8 (Front two-way speakers)
Shown On Model 447.7
Function requirements for speaker output, general
- Circuit 30g ON
- Transport mode not active
Speaker output, general
A distinction is made between the following procedures:
- Speaker output on vehicles, model 447.7 With Code EL9 (Front and rear two-way speakers)
- Speaker output on vehicles With Code EL8 (Front and rear two-way speakers)

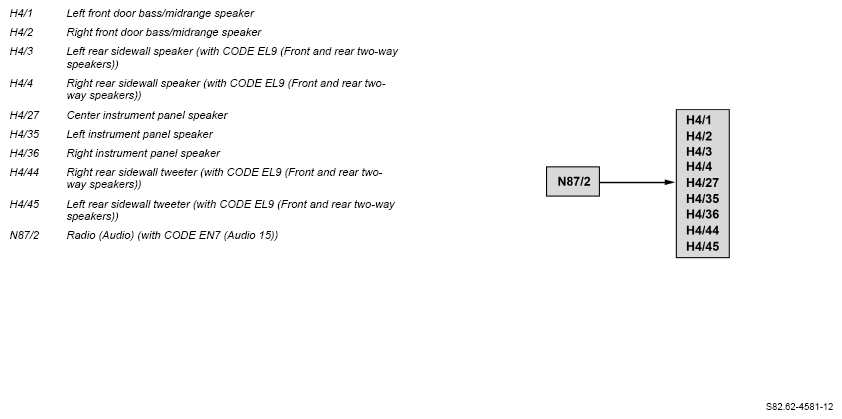

Speaker output on vehicles, model 447.7 With Code EL9 (Front and rear two-way speakers)
The audio signals are amplified directly by the radio (Audio) (N87/2) and emitted over direct lines at the following speakers
- Left front door bass/midrange speaker
- Right front door bass/midrange speaker
- Left rear side wall speaker
- Right rear side wall speaker
- Center instrument panel speaker
- Left instrument panel speaker
- Right instrument panel speaker
- Right rear side wall tweeter
- Left rear side wall tweeter
Speaker output on vehicles With Code EL8 (Front and rear two-way speakers)
The audio signals are amplified directly by the radio (Audio) and emitted over direct lines at the following speakers:
- Left front door bass/midrange speaker
- Right front door bass/midrange speaker
- Left instrument panel speaker
- Right instrument panel speaker
- Center instrument panel speaker
For voice output, e.g. during telephony or navigation, the front speakers are used as with CODE EL8 (Front two-way speakers).
| Electrical function schematic for speaker system | PE82.62-S-2300-97TRA | ||
| Overview of system components, telematics | GF82.85-S-9999TRA |
