Windshield Wiper System (SWA), Function - GF82.30-S-0003TRB
Model 447.6/7
Model 448.7
Shown on model 447.6/7

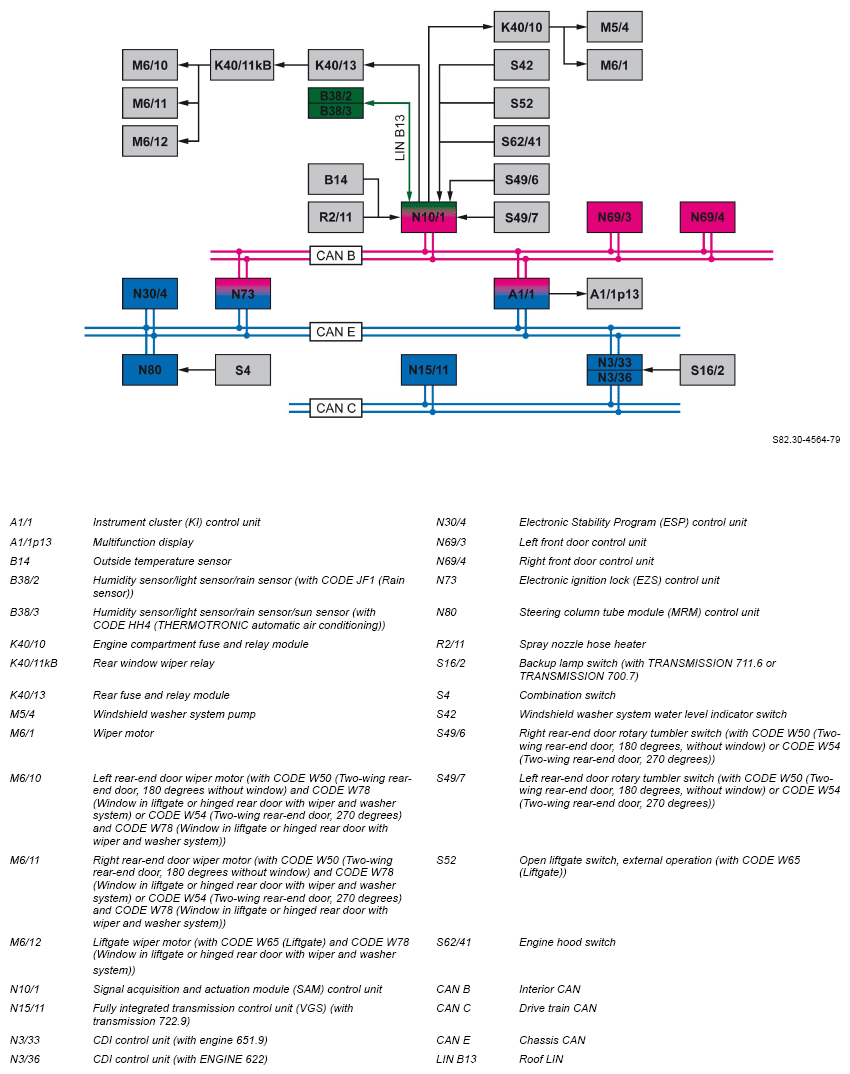

Windshield wiper system, general
The windshield wiper system controls the wiping and washing of the windshield and the rear window.
The windshield wiper system function consists of the following subfunctions, which are described in separate documents:
- Windshield wiper, function
- Windshield washer, function
- Rear window wiping, function with CODE W78 (Window in liftgate or hinged rear door with wiper and washer system)
- Rear window washer, function
- Spray nozzle hose heater function (with code F48 (Heater for windshield washer system))
| Windshield wiper, function | GF82.30-S-3004TRB | ||
| Windshield washer, function | GF82.35-S-3002TRB | ||
| Wiping of rear window, function | Model 447.6/7 with code W78 (Window in tailgate or hinged rear door with wipe/wash system) Model 448.7 with code W78 (Window in tailgate or hinged rear door with wipe/wash system) |
GF82.30-S-3007TRB | |
| Rear window washer, function | Model 447.6/7 with code W78 (Window in tailgate or hinged rear door with wipe/wash system) Model 448.7 with code W78 (Window in tailgate or hinged rear door with wipe/wash system) |
GF82.35-S-3001TRB | |
| Spray nozzle hose heater function | Model 447.6/7 with code F48 (Heated windshield washer system) Model 448.7 with code F48 (Heated windshield washer system) |
GF82.35-S-3009TRA | |
| Overview of system components, wiper system (WSA) | GF82.30-S-9997TRA |
