Splash Guard Removal And Installation - Ar61.30-S-0015E
Model 447
with code H12 (Auxiliary hot-water heater)
except code MX0 (BlueEFFICIENCY package)
except code VQ1 (AVANTGARDE)
Model 447
with code HZ1 (Auxiliary heater (warm air))
except code MX0 (BlueEFFICIENCY package)
except code VQ1 (AVANTGARDE)
Model 447
with code MA6 (Emissions category Euro 6b N1 GR.III/N2)
except code MX0 (BlueEFFICIENCY package)
except code VQ1 (AVANTGARDE)
Model 447
with code MB6 (Low-emission vehicle, Euro 6 Gr. 1)
except code MX0 (BlueEFFICIENCY package)
except code VQ1 (AVANTGARDE)
MODIFICATION NOTES
| 12.02.2019 | Method extended | Step 4 |

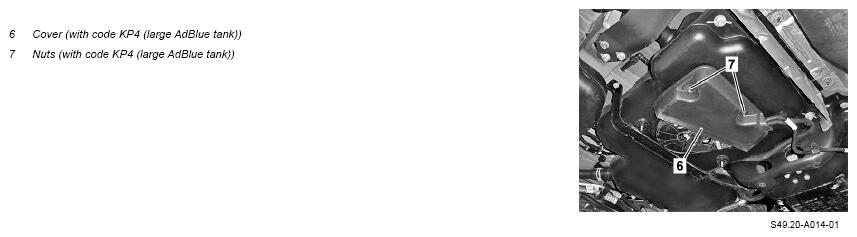

Shown with code KP4 (large AdBlue tank)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notice | Notes on using electrical or pneumatic screwdrivers/impact wrenches | AH00.00-S-0017-01KOA | |
| Remove/install | |||

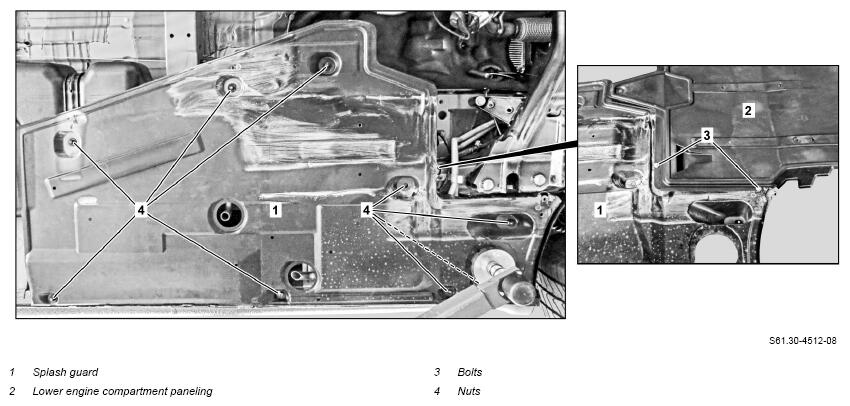

| 1 | Raise vehicle. | AR00.60-S-1000E | |
| 2 | Remove screw/bolts (3). | If bottom engine compartment lining (2) is installed. | |
| 3 | Remove splash guard (1). | ||
| 4 | Remove the cover (6). | Model 447 with code KP4 (AdBlue tank large) |
|
| 5 | Install in the reverse order. |
