Sidewall Paneling Up To Window Cutout Installation - Ar63.10-S-5893-03EB
| 000 588 01 84 00 Welder | WS60.00-P-0021K | ||
| 000 588 02 84 00 Welder | WS60.00-P-0022K |
Model 447.605
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
Left side of vehicle
Model 447.605
with code W29 (Window fixed behind)
Right side of vehicle
Model 447.705
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
with code ZK4 (Mixto)
Left side of vehicle
Model 447.705
with code W29 (Window fixed behind)
with code ZK4 (Mixto)
Right side of vehicle
Model 447.815
Right side of vehicle
Model 447.815
with code T19 (Sliding door left)
Left side of vehicle
Model 448.705
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
Left side of vehicle
Model 448.705
with code W29 (Window fixed behind)
Right side of vehicle
Model 448.815
Right side of vehicle
Model 448.815
with code T19 (Sliding door left)
Left side of vehicle
| 28.10.2021 | Method extended. | Operation steps 28 to 31 |
| Number | Designation | Model 447, 448 except code W64, W65, W68 | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|---|
| BE60.00-Z-1006-01KOJ | Adjust gap dimensions | Sliding door to roof frame | Dimension "FA" | mm | 4, 5 (±1, 4) | 4, 5 (±1, 4) |
| Sliding door to sidewall | Dimension "FB" | mm | 4 (+1, 2/-0, 8) | 4 (+1, 2/-0, 8) | ||
| Glass pane in sliding door, all-round | Dimension "FC" | mm | 3 | 3 | ||
| For picture, see | AR60.00-S-0700-01E | AR60.00-S-0700-01E | ||||
| Number | Designation | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|
| BE60.00-Z-1007-01KOJ | Adjust gap dimensions | Sidewall to liftgate | Dimension "GA" | mm | 4, 5 (+1, 5/-0, 2) |
| Sidewall to cover on guide rail of sliding door | Dimension "GB" | mm | 1, 5 (±0, 8) | ||
| Side wall to fuel filler flap | Dimension "GC" | mm | 4, 5 (±1) | ||
| Glass pane in sidewall at front, all-round | Dimension "GD" | mm | 3 | ||
| Side wall to tail lamp | Dimension "GE" | mm | 1, 2 (±0, 5) | ||
| Glass pane in sidewall at rear, all-round | Dimension "GF" | mm | 3 | ||
| For picture, see | AR60.00-S-0700-01E | ||||
| Number | Designation | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|
| BE60.00-Z-1008-01KOJ | Adjust gap dimensions | Rear window in liftgate, all-round | Dimension "HA" | mm | 4 (±1) |
| Folding rear window in liftgate, all-round | Dimension "HB" | mm | 4 (±1) | ||
| Liftgate to taillamp | Dimension "HC" | mm | 4, 5 (±1) | ||
| Liftgate to bumper at side | Dimension "HD" | mm | 4 (±1) | ||
| Liftgate to bumper at bottom | Dimension "HE" | mm | 6 (±1, 5) | ||
| Liftgate to roof frame | Dimension "HF" | mm | 5, 5 (±1) | ||
| For picture, see | AR60.00-S-0700-01E | ||||
| Number | Designation | Model 447, 448 except code W64, W65, W68 | |||
|---|---|---|---|---|---|
| BE60.00-Z-1009-01KOJ | Adjust gap dimensions | Left rear-end door to right rear-end door | Dimension "IA" | mm | 6 (±1) |
| Rear-end door to bumper at side | Dimension "IB" | mm | 4, 5 (±1) | ||
| Rear-end door to bumper at bottom | Dimension "IC" | mm | 6 (±1, 5) | ||
| Rear-end door to tail lamp | Dimension "ID" | mm | 6, 4 (±1) | ||
| Rear-end door to cover over taillamp | Dimension "IE" | mm | 6, 4 (±1) | ||
| Rear-end door to roof frame | Dimension "IF" | mm | 7 (±1, 5) | ||
| Rear window in rear-end door, all-round | Dimension "IG" | mm | 4 (±1) | ||
| For picture, see | AR60.00-S-0700-01E | ||||
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1003-01A | Seam seal 300 ml in black or white | A 005 989 63 20 |
| BR00.45-Z-1039-13A | Blind rivet nut M5 | N 000000 007333 |
| BR00.45-Z-1092-02A | Adhesive kit, body, 2-component adhesive | A 012 989 17 71 |
Refer to the superordinate service document for further information.
Safety information in superordinate service document must be observed.
The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.
- Install side wall paneling (1), sliding door, liftgate or rear-end door, seal and lock striker and fit.
- Check gaps using
feeler gauge and adjust.
Model 447, 448
Gap dimensions "FA", "FB"
Model 447, 448 with code W65 (tailgate), model 447.7/8, 448.8 with code W64 (rear window to be opened separately), model 447.8, 448.8 with code W68 (electrically actuated tailgate)
Gap dimensions "GA", "GC"
Model 447, 448 with code W65 (tailgate), model 447.7/8, 448.8 with code W64 (rear window to be opened separately), model 447.8, 448.8 with code W68 (electrically actuated tailgate)
Gap dimension "HF"
Model 447.6/7 except code W64 (rear window to be opened separately) except code W65 (tailgate) except code W68 (electrically actuated tailgate)
Gap dimensions "IA", "IF"
Shown on model 447.6/7 except for code W65 (Liftgate) and except for code W68 (Electrically actuated liftgate)
- Fix sidewall paneling (1) in place.
- Remove sliding door, liftgate or rear-end door, seal and lock striker.

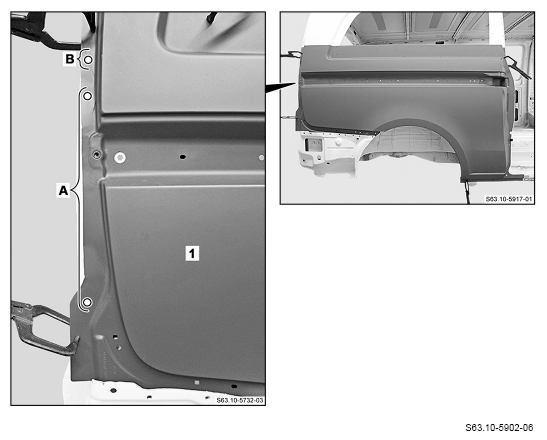

- Drill ø 7.1 mm rivet holes on side wall paneling (1) at defined punch marks (area A).
- MODEL 447.6/7 except CODE W65 (Liftgate) except CODE W68 (Electrically actuated liftgate)
Drill ø 7.1 mm rivet hole in side wall paneling (1) at defined punch marks (area B).
- Remove side wall paneling (1).
- Deburr rivet holes on both sides.
- Coat insides of riveted joints with zinc dust paint.

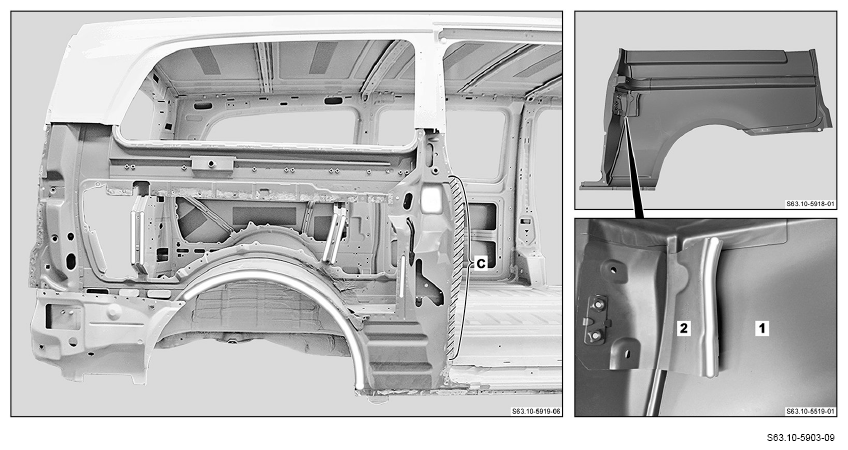

- Apply sealant to body and lock striker reinforcement (2).
- Apply 2-component adhesive to the body (area C).
Observe pretreatment of bonding surface (area C). Refer to the manufacturer's information for the curing and working times of 2-component adhesive.
- Install side wall paneling (1) and fit.
- Fix sidewall paneling (1) in place.

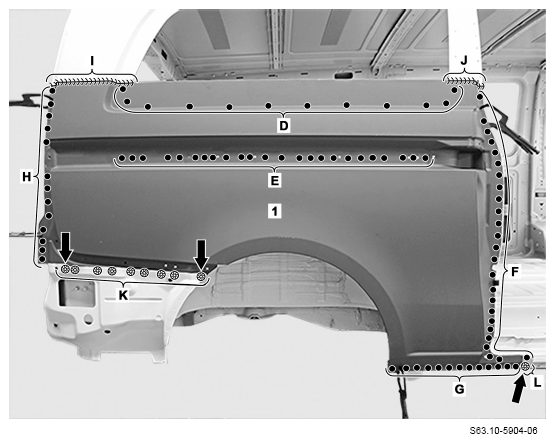

- Side wall paneling (1)
(areas D to H).
- Drill side wall paneling (1) before shielding gas welding (arrows).
- Side wall paneling (1)
(areas K and L).
- Side wall paneling (1)
(areas I and J).
Inert gas weld in intervals and allow to cool down in between. Reduces heat distortion.

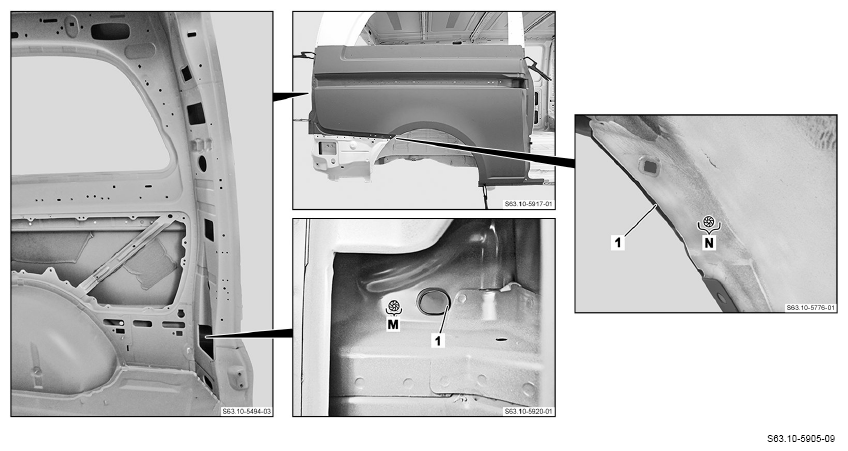

- Side wall paneling (1)
(areas M and N).

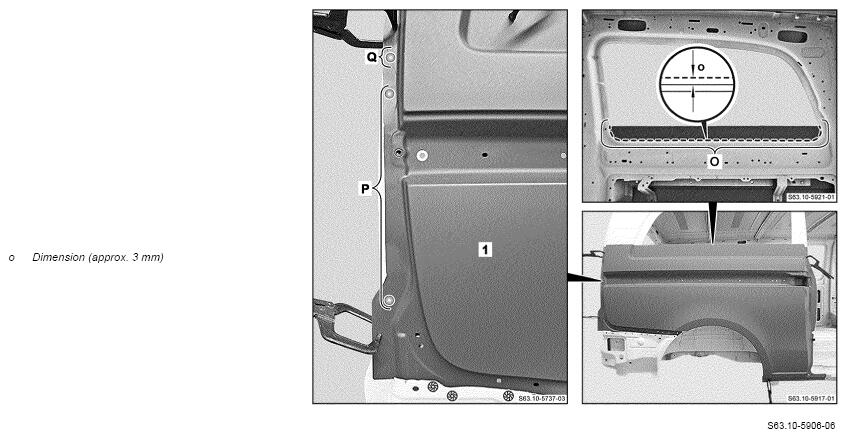

- Scribe separating point (area O).
- Cut separating point (area O).
- Remove separated section from side wall paneling (1).
- Grind shielding gas welds and shielding gas spot welds down flat.
- Clean weld joints.
- Restore and smooth surfaces on sidewall paneling (1).
- Remove shavings and drill chips.
Shown on model 447.6/7 except for code W65 (Liftgate) and except for code W68 (Electrically actuated liftgate)
- Position blind rivet nuts M5 (area P).
- MODEL 447.6/7 except CODE W65 (Liftgate) except CODE W68 (Electrically actuated liftgate)
Position blind rivet nut M5 (area Q).
Shown on model 447.811
- Model 447, 448.8 with code CN1 (Exterior door sill) Position and align rail (X).
- Model 447, 448.8 with code CN1 (Exterior door sill) Transfer hole from rail (X) to body.
Then remove rail (X).
- Model 447, 448.8 with code CN1 (Exterior door sill) Drill and center punch hole (arrow).
Number of holes can vary depending on design.
- Model 447, 448.8 with code CN1 (Exterior door sill) Deburr holes and remove drill chips.
