Side Wall Paneling Installation - Ar63.10-S-0110-06EB

Model 447.605

except code W29 (Window fixed behind)

Right side of vehicle

Model 447.605

with code T19 (Sliding door left)

except code W29 (Window fixed behind)

Left side of vehicle

Model 447.705

except code W29 (Window fixed behind)

except code W32 (Rear passenger compartment electric pop-out windows)

Right side of vehicle

Model 447.705

with code T19 (Sliding door left)

except code W29 (Window fixed behind)

except code W32 (Rear passenger compartment electric pop-out windows)

Left side of vehicle

Model 448.705

with code T19 (Sliding door left)

with code ZM0 (Panel van)

except code W29 (Window fixed behind)

except code W32 (Rear passenger compartment electric pop-out windows)

Left side of vehicle

Model 448.705

with code ZM0 (Panel van)

except code W29 (Window fixed behind)

except code W32 (Rear passenger compartment electric pop-out windows)

Right side of vehicle

Number	Designation				Model 447, 448 except code W64, W65, W68	Model 447, 448 with code W64, W65, W68
BE60.00-Z-1006-01KOJ	Adjust gap dimensions	Sliding door to roof frame	Dimension "FA"	mm	4, 5 (±1, 4)	4, 5 (±1, 4)
		Sliding door to sidewall	Dimension "FB"	mm	4 (+1, 2/-0, 8)	4 (+1, 2/-0, 8)
		Glass pane in sliding door, all-round	Dimension "FC"	mm	3	3
			For picture, see		AR60.00-S-0700-01E	AR60.00-S-0700-01E

Number	Designation				Model 447, 448 except code W64, W65, W68	Model 447, 448 with code W64, W65, W68
BE60.00-Z-1007-01KOJ	Adjust gap dimensions	Sidewall to liftgate	Dimension "GA"	mm	-	4, 5 (+1, 5/-0, 2)
		Sidewall to cover on guide rail of sliding door	Dimension "GB"	mm	1, 5 (±0, 8)	1, 5 (±0, 8)
		Side wall to fuel filler flap	Dimension "GC"	mm	4, 5 (±1)	4, 5 (±1)
		Glass pane in sidewall at front, all-round	Dimension "GD"	mm	3	3
		Side wall to tail lamp	Dimension "GE"	mm	1, 2 (±0, 5)	1, 2 (±0, 5)
		Glass pane in sidewall at rear, all-round	Dimension "GF"	mm	3	3
			For picture, see		AR60.00-S-0700-01E	AR60.00-S-0700-01E

Number	Designation				Model 447, 448 except code W64, W65, W68	Model 447, 448 with code W64, W65, W68
BE60.00-Z-1008-01KOJ	Adjust gap dimensions	Rear window in liftgate, all-round	Dimension "HA"	mm	-	4 (±1)
		Folding rear window in liftgate, all-round	Dimension "HB"	mm	-	4 (±1)
		Liftgate to taillamp	Dimension "HC"	mm	-	4, 5 (±1)
		Liftgate to bumper at side	Dimension "HD"	mm	-	4 (±1)
		Liftgate to bumper at bottom	Dimension "HE"	mm	-	6 (±1, 5)
		Liftgate to roof frame	Dimension "HF"	mm	-	5, 5 (±1)
			For picture, see		-	AR60.00-S-0700-01E

Number	Designation				Model 447, 448 except code W64, W65, W68	Model 447, 448 with code W64, W65, W68
BE60.00-Z-1009-01KOJ	Adjust gap dimensions	Left rear-end door to right rear-end door	Dimension "IA"	mm	6 (±1)	-
		Rear-end door to bumper at side	Dimension "IB"	mm	4, 5 (±1)	-
		Rear-end door to bumper at bottom	Dimension "IC"	mm	6 (±1, 5)	-
		Rear-end door to tail lamp	Dimension "ID"	mm	6, 4 (±1)	-
		Rear-end door to cover over taillamp	Dimension "IE"	mm	6, 4 (±1)	-
		Rear-end door to roof frame	Dimension "IF"	mm	7 (±1, 5)	-
		Rear window in rear-end door, all-round	Dimension "IG"	mm	4 (±1)	-
			For picture, see		AR60.00-S-0700-01E	-

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

1. Install side wall paneling (1), rear side wall paneling bottom section (4), sliding door, liftgate or rear-end door, sealing frame and lock striker and fit.
2. Check gaps using feeler gauge and adjust.

   Gap dimension "FB"

   Gap dimension "GA"

   Gap dimension "HF"

   Gap dimensions "IA", "IF"

3. Fix side wall paneling (1) and rear side wall paneling bottom section (4) in place.
4. Remove sliding door, liftgate or rear-end door, sealing frame and lock striker.

   Courtesy of MERCEDES-BENZ USA

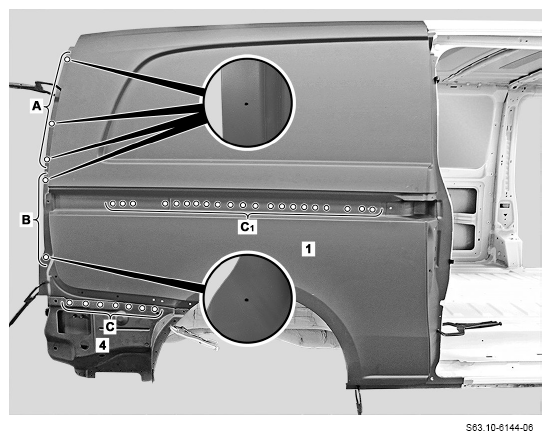

5. Drill Ø 7.1 mm rivet holes in side wall paneling (1) at defined punch marks (area B).
6. Model 447.605/705 except code W65 (Liftgate) except code W68 (Electrically actuated liftgate)

   Drill Ø 7.1 mm rivet holes in side wall paneling (1) at defined punch marks (area A).

7. Drill Ø 6.5 mm rivet holes in side wall paneling (1) and rear side wall paneling bottom section (4) (area C and C₁ ).
8. Remove side wall paneling (1) and rear side wall paneling bottom section (4).
9. Deburr rivet holes on both sides.
10. Coat insides of riveted joints with zinc dust paint.

    Courtesy of MERCEDES-BENZ USA

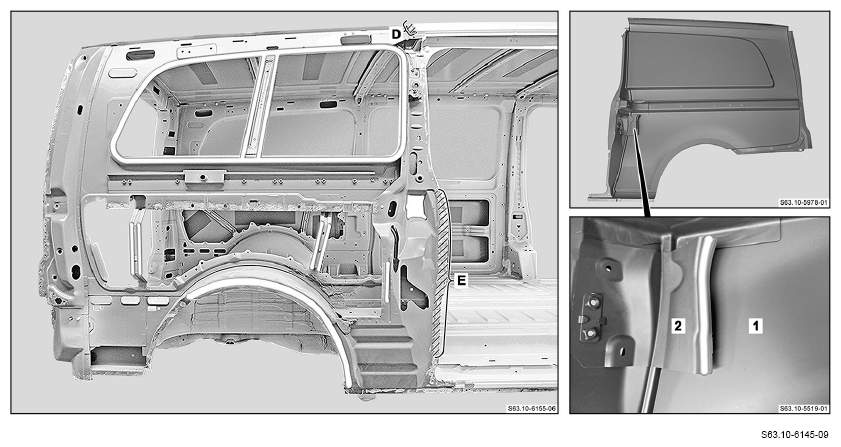

11. Apply sealant to body and lock striker reinforcement (2).
12. Apply 2-component adhesive to body (areas D and E).

    Observe pretreatment of bonding surfaces (areas D and E). Refer to the manufacturer's information for the curing and working times of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

13. Install side wall paneling (1) and rear side wall paneling bottom section (4) and fit.
14. Fix side wall paneling (1) and rear side wall paneling bottom section (4) in place.

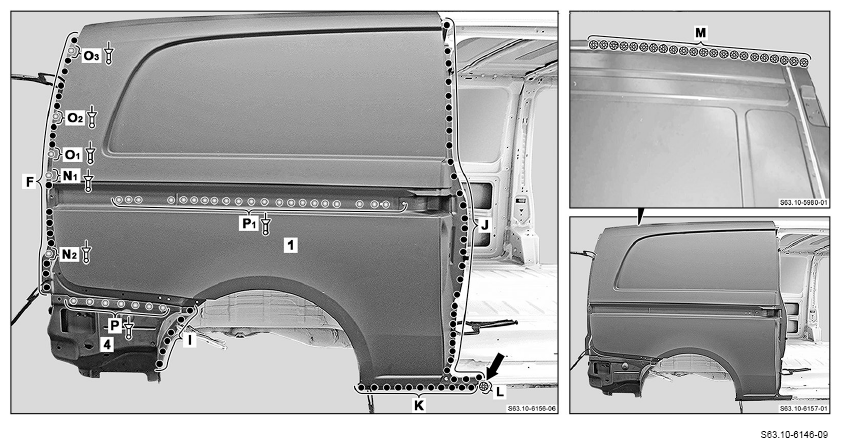

15. Side wall paneling (1) and rear side wall paneling bottom section (4) (areas F, I up to K).
16. Drill side wall paneling (1) before inert gas welding (arrow).
17. Side wall paneling (1) (areas L and M).
18. Rivet side wall paneling (1) and rear side wall paneling bottom section (4) with Ø 6, 4x14 blind rivets (areas P and P₁ ).
19. Install blind rivet nuts M5 (areas N₁ and N₂ ).
20. Model 447.605/705 except code W65 (Liftgate) except code W68 (Electrically actuated liftgate)

    Install blind rivet nuts M5 (areas O₁ up to O₃ ).

    Courtesy of MERCEDES-BENZ USA

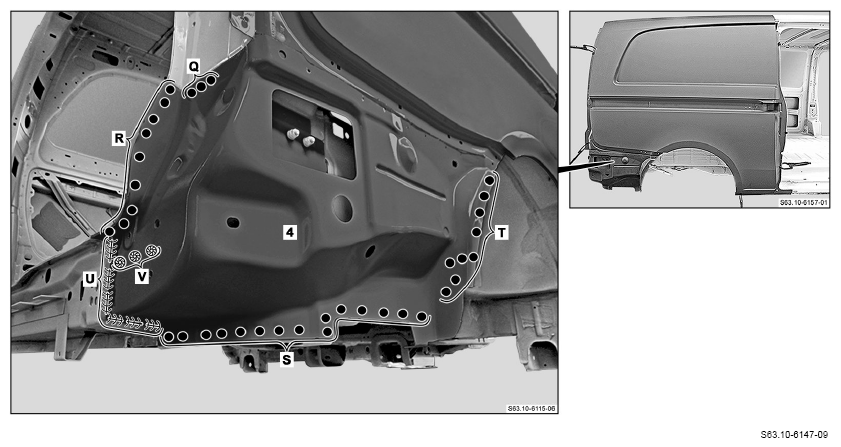

21. Rear side wall paneling bottom section (4) (areas Q to T).
22. Rear side wall paneling bottom section (4) (area V).
23. Rear side wall paneling bottom section (4) (area U).

    Inert gas weld in intervals and allow to cool down in between. Reduces heat distortion.

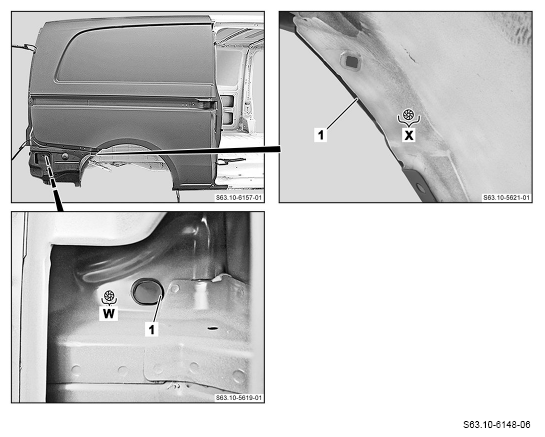

24. Side wall paneling (1) (areas W and X).
25. Grind inert gas welds and inert gas spot welds down flat.
26. Clean weld joints.
27. Restore surfaces on side wall paneling (1) and rear side wall paneling bottom section (4) and smooth.
28. Remove shavings and drill chips.
