Replace Adjusting Nut On Cable Slack Adjuster Of Parking Brake - SM42.20-S-0018A

Model 447.6##/7## ## as of 039541 up to 049261

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text	Time	Acc. no.	Code
P	02 9177	Operations: Replace adjusting nut on cable slack adjuster of parking brake	-	42 930 91	V2FESTBREM

Courtesy of MERCEDES-BENZ USA

Notice	Special instructions for lifting and supporting vehicle		AH00.60-S-0100-01KOA
	Check
1	Check whether vehicle is affected by measure.	For authorized Mercedes-Benz service partners, only the entry in the Extended VEGA Application (EVA) edition, in the "Current" tab is decisive. There is no need to also check the affected vehicles in the workshop information system (WIS) or vehicle list.
	Remove
2	Release parking brake.
3	Raise vehicle.
			AR00.60-S-1000E

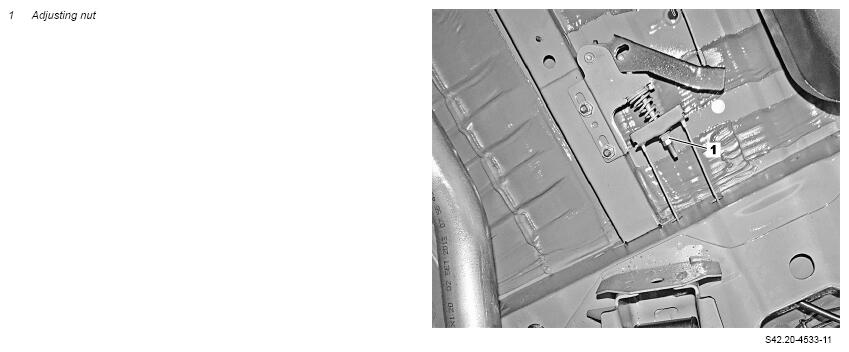

4	Remove adjusting nut (1).	The adjusting nut (1) is not used again and can be disposed of in a proper manner.
	Install
5	Attach new adjusting nut (1).	The new adjusting nut (1) on the cable slack adjuster for the parking brake is self-locking and therefore it does not require an additional jam nut.
	Adjust
6	Adjust rear brake cables.
		Model 447.6##/7## ## as of 039541 up to 049261 except code B25 (Electric parking brake)	AR42.20-S-0540-01E
	000 588 05 21 00 Roller brake test stand		WS42.00-P-0006B
		Force on parking brake pedal at first notch	*BE42.20-Z-1003-01KOB
	Check
7	Lower vehicle.
			AR00.60-S-1000E
8	Check function of parking brake.
9	Check parking brake on roller brake test stand.
	000 588 05 21 00 Roller brake test stand		WS42.00-P-0006B

CHECK VALUES FOR PARKING BRAKE

Number	Designation		Model 447, 448
BE42.20-Z-1003-01KOB	Force on parking brake pedal at first notch	N	100...120

PARTS ORDERING NOTE

Part no.	Designation	Quantity
N 000000 003175	Adjusting nut	1
