Remove/Install Rear Brake Control Cable - AR42.20-S-0525EF
Model 447.6 with engine 780.705
Except Code B25 (Electric parking brake)
Model 447.6/7 with engine 274, 622, 651, 654.9, 780.701
Except Code B25 (Electric parking brake)
Model 447.7 with engine 254, 780.702
Except Code B25 (Electric parking brake)
Model 448.7
Except Code B25 (Electric parking brake)

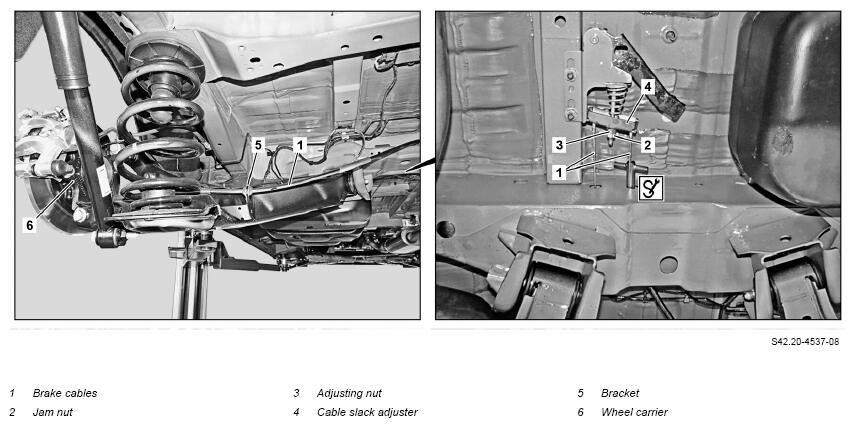

Shown with engine 622 on left side of vehicle
Shown with engine 780.705
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Remove brake shoes of parking brake. | Model 447.6 with engine 780.705 except code XM7 (Facelift II), Model 447.6/7 with engine 274, 622, 651, 654.9, 780.701 except code XM7 (Facelift II), Model 447.6/7 with engine 654.9 with code XM7 (Facelift II), Model 447.7 with engine 254, 780.702 with code XM7 (Facelift II), Model 448.7 except code XM7 (Facelift II) | AR42.20-S-0530E |
| 2 | Remove rear center underfloor paneling. | Model 447.6/7 with engine 654.9 with code CU4 (Aerodynamics package) | AR61.30-S-1001E |
| 3 | Unscrew counternut (2). | If counternut (2) is installed. | |
| 4 | Release adjusting nut (3) at cable slack adjuster (4). | ||
| 5 | Remove brake cable (1) from cable slack adjuster (4). | ||
| 6 | Remove brake cable (1) from holder (5). | ||
| 7.1 | Pull respective brake cable (1) out of duct on substructure. | Model 447.6 with engine 780.701, model 447.6/7 with engine 274, 622, 651, 654.9, model 447.7 with engine 254, model 448.7 |
Fig 1 |
| 7.2 | Pull respective brake cable (1) out of holder (7). | Model 447.6 with engine 780.705, model 447.7 with engine 780.702 | |
| 8 | Detach brake cable (1). | ||
| 9 | Install in the reverse order. |
