Remove/Install Master Brake Cylinder - AR42.10-S-0300E

Model 447, 448

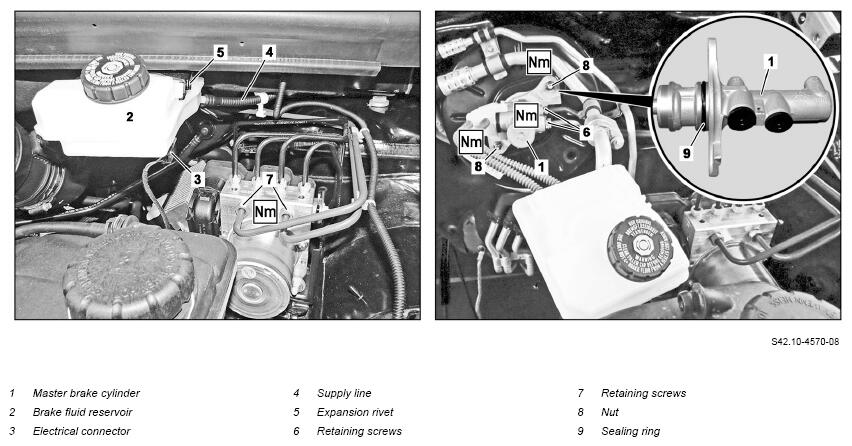

Fig 1: Master Brake Cylinder Components Location - Model 447 (Shown On Model 447.### 1# With Engine 622)
G16482704Courtesy of MERCEDES-BENZ USA

Shown on model 447.### 1# with engine 622

DANGER Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.
Model 447 with engine 780
AS00.00-Z-0035-01A
DANGER Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. AS42.50-Z-0002-01A
CAUTION Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment Model 447 with engine 780 AH00.00-Z-0300-01A
Notice  Notes on externally invisible brake fluid loss   AH42.10-P-9406-02A
Notice  Brake fluid notes   AH42.50-P-0001-01A
Notice  Notes on repairs to brake system   AH42.00-P-0003-01A
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
  Notes on inspecting corrosion on brake lines   AH42.50-Z-0002-01A
REMOVINGINSTALLING Remove/install
1 Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2 Remove vacuum in brake booster. IMPORTANT To do this, operate brake pedal several times.
3 Remove intake manifold pressure sensor. Model 447.### 1# with engine 654.9 AR07.04-S-0102E
4 Suction off brake fluid from brake fluid reservoir (2) and then reseal brake fluid reservoir (2). IMPORTANTCommercially available devices/tools
Extraction bellows

5 Detach feed line (4) of clutch master cylinder from brake fluid reservoir (2). Model 447 with transmission 700.7, 710.5, 711.6
IMPORTANT Catch escaping brake fluid using a suitable rag and seal openings.
SPECIAL TOOL Record plug
Fig 6
6 Disconnect electrical connector (3).
7 Remove expansion rivet (5). INSTALLATION IMPORTANT Check expansion rivet (5) for damage.
If damage is found,

replace expansion rivet (5).

8 Detach brake fluid reservoir (2) from air/water duct and swivel out of working area.
9 Unscrew retaining screws (6) and remove brake lines from master brake cylinder (1). IMPORTANT Catch escaping brake fluid using a suitable rag and seal openings.
Different retaining screws (6) are installed depending on the vehicle version.
TORQUE SPECIFICATION Retaining screw, brake line to master brake cylinder
*BA42.10-Z-1004-04KOD
    SPECIAL TOOL Box wrench bit Fig 5
    SPECIAL TOOL Box wrench Fig 2
    SPECIAL TOOL Box wrench bit Fig 4
    SPECIAL TOOL Record plug Fig 6
10 Loosen retaining screws (7) of brake lines on hydraulic unit. IMPORTANT Only loosen brake lines enough for the master brake cylinder (1) to be guided past the brake lines.
Different retaining screws (7) are installed depending on the vehicle version.
IMPORTANT Collect any escaping brake fluid using suitable rags.
TORQUE SPECIFICATION Retaining screw, brake line to hydraulic unit
*BA42.10-Z-1003-04KOD
    SPECIAL TOOL Box wrench bit Fig 5
    SPECIAL TOOL Box wrench Fig 2
    SPECIAL TOOL Box wrench bit Fig 4
11 Detach nuts (8) and remove master brake cylinder (1) with brake fluid reservoir (2). INSTALLATION IMPORTANT Replace the sealing ring (9) on the master brake cylinder (1).
TORQUE SPECIFICATION Nut, brake master cylinder to brake booster
*BA42.10-Z-1001-05KOE
    SPECIAL TOOL Assembly tool Fig 3
12 Detach brake fluid reservoir (2) from master brake cylinder (1). When replacing the master brake cylinder (1).
13 Install in the reverse order.
14 Bleed brake system.   AR42.10-S-0010E
INSPECT Check
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.
Model 447 with engine 254, 274, 622, 651, 654
Model 448
AS00.00-Z-0005-01A
15 Check brake system in area of master brake cylinder (1), hydraulic unit and brake fluid reservoir (2) for leak tightness.   AR42.10-S-0100-01E
MASTER BRAKE CYLINDER

Number Designation Model 447, 448
BA42.10-Z-1001-05KOE Nut, brake master cylinder to brake booster Nm 23
BRAKE LINES, BRAKE HOSES

Number Designation Model 447, 448
BA42.10-Z-1003-04KOD Retaining screw, brake line to hydraulic unit Nm 14
BRAKE LINES, BRAKE HOSES

Number Designation Model 447, 448
BA42.10-Z-1004-04KOD Retaining screw, brake line to master brake cylinder Nm 14
Fig 2: Identifying Box Wrench (000 589 76 03 00)
G10248133Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Assembly Tool (000 589 93 63 00)
G12939678Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Box Wrench Bit (140 589 00 03 00)
G07449671Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Box Wrench Bit (000 589 75 03 00)
G07274453Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Record Plug (129 589 00 91 00)
G09975019Courtesy of MERCEDES-BENZ USA
