Remove/Install Electronic Stability Program (ESP(R)) Hydraulic Unit - AR42.45-S-0817E

Model 447, 448

MODIFICATION NOTES

07.12.2023 Work procedure updated The whole document

Shown with engine 651

G16482745Courtesy of MERCEDES-BENZ USA

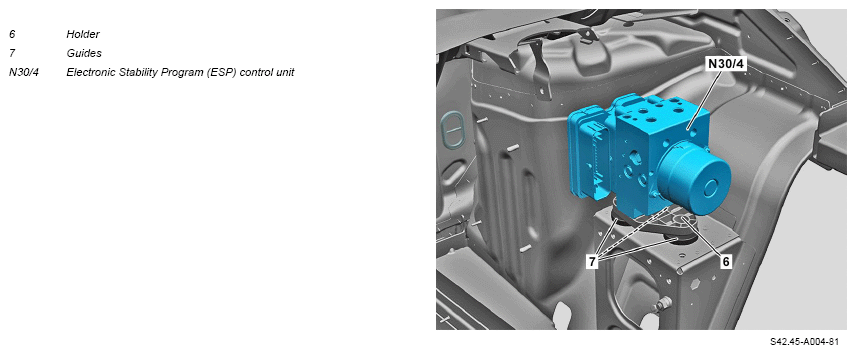

Shown with engine 780.702

G16482746Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.
Model 447 with engine 780
AS00.00-Z-0035-01A
CAUTION Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
Notice  General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment Model 447 with engine 780 AH00.00-Z-0300-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Brake fluid notes   AH42.50-P-0001-01A
Notice  Notes on repairs to brake system   AH42.00-P-0003-01A
  Notes on inspecting corrosion on brake lines   AH42.50-Z-0002-01A
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
  General information on malfunctions in the brake system   AH42.30-D-2007-01KOA
REMOVINGINSTALLING Remove/install
1 Suction off brake fluid from brake fluid reservoir (1) and then reseal brake fluid reservoir (1). IMPORTANTCommercially available devices/tools
Extraction bellows

2 Remove brake fluid reservoir (1) from air/water duct. IMPORTANT To do so, remove expansion rivet.
INSTALLATION IMPORTANT Check expansion rivet for damage.
If damage is found,

replace expansion rivet.

3 Disconnect electrical connector (4).
4 Remove hydraulic lines (2). REMOVAL IMPORTANT Mark assignment of hydraulic lines (2).
IMPORTANT Collect any escaping brake fluid using suitable rags. Seal the connections and hydraulic lines (2).
Different retaining screws are installed depending on the given vehicle version.
INSTALLATION IMPORTANT Note assignment of hydraulic lines (2).
TORQUE SPECIFICATION Retaining screw, brake line to hydraulic unit
*BA42.10-Z-1003-04KOD
    SPECIAL TOOL Box wrench bit Fig 4
    SPECIAL TOOL Box wrench Fig 1
    SPECIAL TOOL Box wrench bit Fig 2
    SPECIAL TOOL Record plug Fig 3
5 Remove hydraulic lines (3). REMOVAL IMPORTANT Mark assignment of hydraulic lines (3).
IMPORTANT Collect any escaping brake fluid using suitable rags. Seal connections and hydraulic lines (3).
Different retaining screws are installed depending on the given vehicle version.
INSTALLATION IMPORTANT Note assignment of hydraulic lines (3).
TORQUE SPECIFICATION Retaining screw, brake line to hydraulic unit
*BA42.10-Z-1003-04KOD
    SPECIAL TOOL Box wrench bit Fig 4
    SPECIAL TOOL Box wrench Fig 1
    SPECIAL TOOL Box wrench bit Fig 2
    SPECIAL TOOL Record plug Fig 3
6 Remove nuts (5). Model 447 with engine 274, 622, 651, 780.701
Model 447 with engine 654
except code XM7 (MOPF II)
Model 448 with engine 274
TORQUE SPECIFICATION Nut, hydraulic unit to bracket
*BA42.30-P-1001-03E
7.1 Remove Electronic Stability Program (ESP) control unit (N30/4). Model 447 with engine 274, 622, 651, 780.701
Model 447 with engine 654
except code XM7 (MOPF II)
Model 448 with engine 274

7.2 Remove Electronic Stability Program (ESP) control unit (N30/4) with holder (6). Model 447 with engine 654
with code XM7 (MOPF II)
Model 447 with engine 780.702/705
Model 447, 448 with engine 254
INSTALLATION IMPORTANT Check holder (6) is correctly seated in guides (7).

8 Remove Electronic Stability Program (ESP) control unit (N30/4) from holder (6). Model 447 with engine 654
with code XM7 (MOPF II)
Model 447 with engine 780.702/705
Model 447, 448 with engine 254
When replacing the Electronic Stability Program (ESP) control unit (N30/4).
IMPORTANT To do this, remove screw.
TORQUE SPECIFICATION Bolt, hydraulic unit to bracket
*BA42.30-P-1002-03E
9 Install in the reverse order.
10 Commission Electronic Stability Program (ESP) control unit (N30/4) using diagnostic system. When replacing the Electronic Stability Program (ESP) control unit (N30/4).
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-S-2000-04E
11 Remove diagnostic system. When replacing the Electronic Stability Program (ESP) control unit (N30/4).
12 Bleed brake system.   AR42.10-S-0010E
BRAKE LINES, BRAKE HOSES

Number Designation Model 447, 448
BA42.10-Z-1003-04KOD Retaining screw, brake line to hydraulic unit Nm 14
HYDRAULIC UNIT

Number Designation Model 447, 448
BA42.30-P-1001-03E Nut, hydraulic unit to bracket Nm 8
HYDRAULIC UNIT

Number Designation Model 447, 448
BA42.30-P-1002-03E Bolt, hydraulic unit to bracket Nm 27
Fig 1: Identifying Box Wrench (000 589 76 03 00)
G07449602Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Box Wrench Bit (140 589 00 03 00)
G07449671Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Record Plug (129 589 00 91 00)
G09975019Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Box Wrench Bit (000 589 75 03 00)
G07274453Courtesy of MERCEDES-BENZ USA
