Remove/Install Brake Cover Plate Of Front Disk Brake - AR42.10-S-0005E
Model 447, 448
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Remove/install | |||
| 1 | Remove brake disk of respective side of vehicle. | AR42.10-S-0230E | |

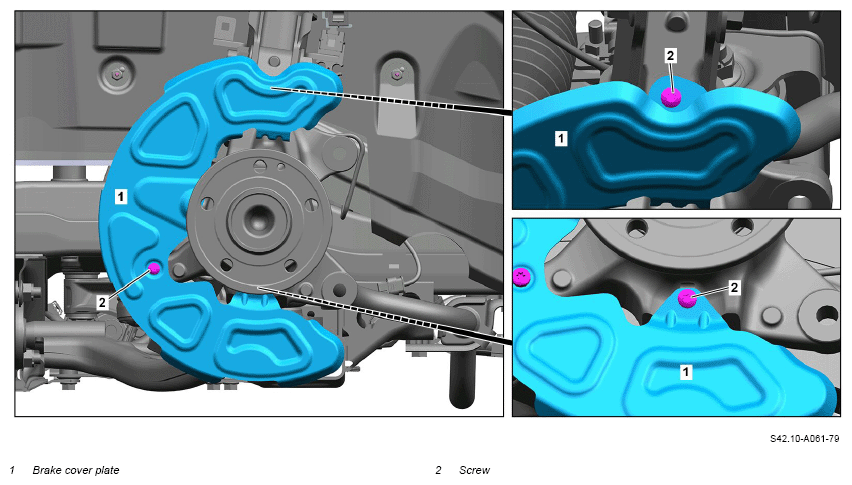

| 2 | Remove brake cover plate (1). | *BA00.10-Z-1002-01KOA | |
| 3 | Install in the reverse order. |
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD
| Number | Designation | 8.8 | 10.9 | ||
|---|---|---|---|---|---|
| BA00.10-Z-1002-01KOA | M6 | Galvanized | Nm | 9 | 13 |
| Phosphated | Nm | 9 | 12 | ||
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD
| Number | Designation | 12.9 | ||
|---|---|---|---|---|
| BA00.10-Z-1002-01KOA | M6 | Galvanized | Nm | 16 |
| Phosphated | Nm | 14 | ||
