Brake System - Inspect Fluid Level - AP42.10-S-4210E
Model 447, 448
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. Model 447 with engine 780 |
AS00.00-Z-0035-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes Do not touch hot or rotating parts Model 447 with engine 254, 274, 622, 651, 654 Model 448 |
AS00.00-Z-0005-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Notes on externally invisible brake fluid loss | AH42.10-P-9406-02A | |
| Notice | Brake fluid notes | AH42.50-P-0001-01A | |
| Check | |||

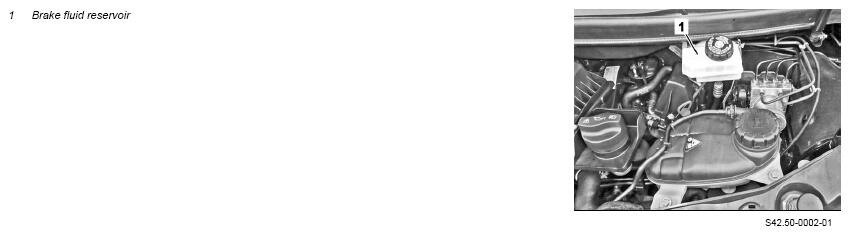

| 1 | Check brake fluid level in brake fluid reservoir (1). | marking and the "Min." marking. |
|
| If brake fluid level is too low, ↓ check brake system for leaks. |
AR42.10-S-0100-01E | ||
| 2 | Check clutch operation for leak tightness. | Model 447 with transmission 700.7, 710.5, 711.6 If the brake fluid level is too low. |
