Remove/Install Sealing For Crank Window On Front Door - AR72.10-S-1905E

Model 447

Model 448

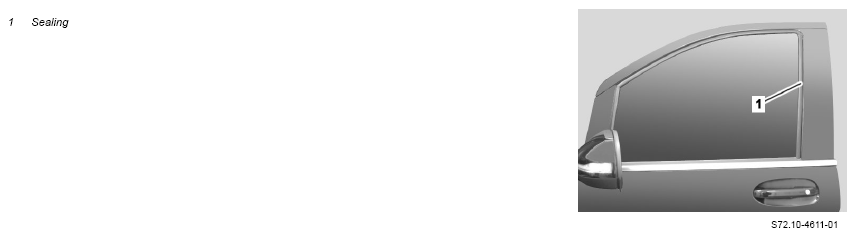

G16488274

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove door liner on front door		AR72.10-S-6575E
2	Remove door module		AR72.10-S-0900E
3	Remove sealing (1).	Moisten seal (1) with lubricant. Ensure that seal (1) is seated correctly. Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
4	Install in the reverse order

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 L	A 000 989 03 67
