Remove/Install Cover On Rear-End Door Trim - AR72.20-S-6615-01E
Model 447.7
With Code V23 (Interior panelling higher execution)
Except Code ZU7 (National version for Canada)
Except Code ZU8 (National version for USA)

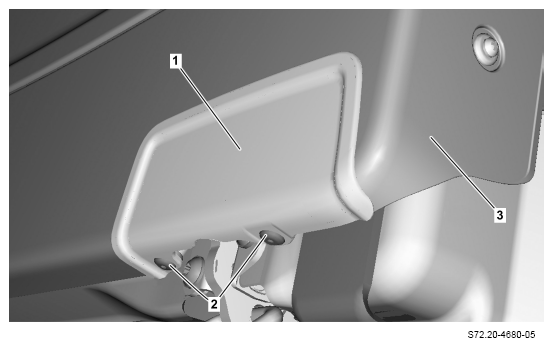

- Remove expansion rivets (2).
- Remove cover (1) from door trim (3).
Shown On right rear-end door
 Courtesy of MERCEDES-BENZ USA
|
