Remove/Install Guide Pulley Housing On Electric Sliding Door Guide Rail - AR72.16-S-7820E

Model 447.7/8, 448.8

With Code T56 (Electric operation of sliding door on left)

Model 447.7/8, 448

With Code T55 (Electric operation of sliding door on right)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1.1	Remove fuse 74 on left electric sliding door	Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) If the housing (6) is installed on left electrical sliding door.
	Assignment of right footwell firewall fuse and relay module		GF54.15-S-1256-39TRA
1.2	Remove fuse 311 on right electric sliding door	Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) If the housing (6) is installed on the right electrical sliding door.
	Assignment of fuse and relay module, right A-pillar		GF54.15-S-1256-38TRA
2	Remove left and right tail lamp		AR82.10-S-4905E
3	Remove center guide rail paneling for sliding door		AR72.16-S-1260-01E

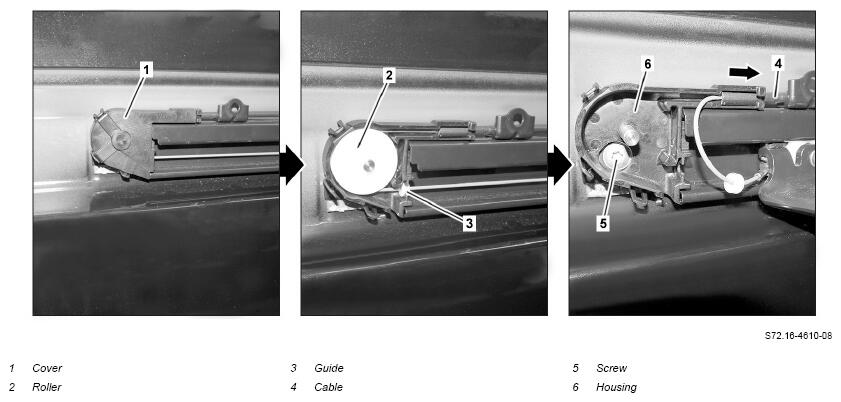

4	Unclip cover (1)
5	Unclip guide (3) and remove roller (2)	: Ensure that guide (3) and cable (4) are seated correctly.
6	Remove bolt (5)	Screw/bolt, guide pulley housing to sidewall	*BA72.16-Z-1019-01KOJ
7	Remove cable (4) in direction of arrow
8	Remove housing (6)
9	Install in the reverse order.
	Check
10	Check sliding door for proper function
