Adjust Front Door - AR72.10-S-0550E
Model 447
Model 448
MODIFICATION NOTES
| 13.02.2024 | Added: Check all the components relevant for door adjustment for wear, damage and soiling. | Operation step 1 | |
| 13.02.2024 | Added: Turn the stop buffer (4) in until the stop buffer (4) and body are no longer in contact when the front door is closed. | Operation Step 3 | |
| 13.02.2024 | Added: Turn the stop buffer (4) out until the stop buffer (4) and body are in contact when the front door is closed. | Operation step 11 |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Check | |||
| 1 | Check all the components relevant for door adjustment for wear, damage and soiling. | ||
| 2 | Check gap dimensions "BD", "DA", "DB", "DC", "DD", "DE" on the front door. | AR60.00-S-0700-01E | |
| *BE60.00-Z-1002-01KOJ | |||
| *BE60.00-Z-1004-01KOJ | |||
| Fig 1 | |||
| Adjust | |||

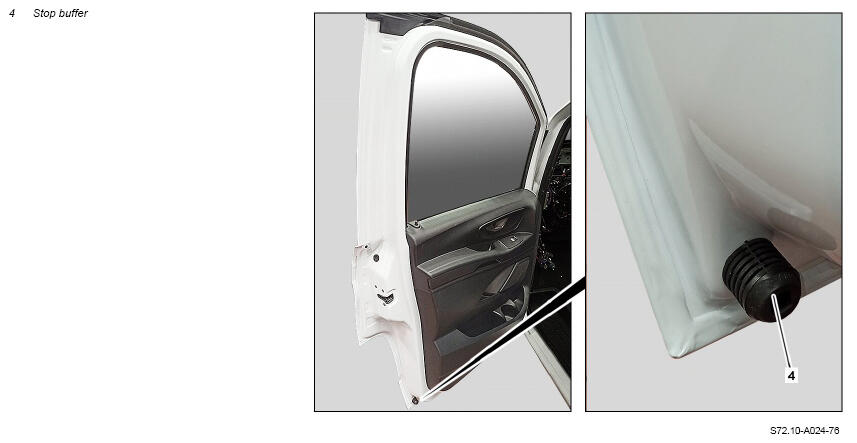

| 3 | Turn the stop buffer (4) in until the stop buffer (4) and body are no longer in contact when the front door is closed. | The measurement and adjustment results may otherwise be incorrect. |
|

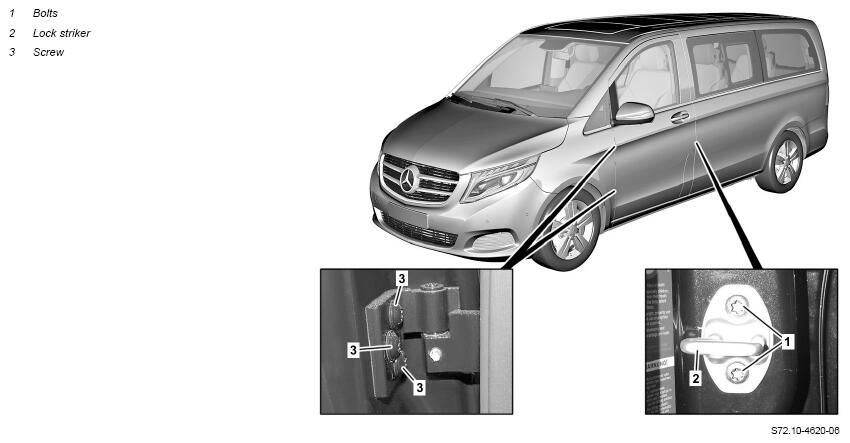

| 4 | Loosen screws (1). | ||
| 5 | Release screws (3). | ||
| 6 | Adjust gap dimensions "DA" and "DD" and the transitions between the front fender and A-pillar by moving the front door | AR60.00-S-0700-01E | |
| *BE60.00-Z-1004-01KOJ | |||
| Fig 1 | |||
| 7 | Tighten screws (3). | *BA72.10-Z-1004-01KOG | |
| 8 | Adjust the transition between the front door and side wall/sliding door by moving the lock striker (2) | ||
| 9 | Tighten screws (1). | *BA72.10-Z-1005-01KOG | |
| 10 | Repair paint damage on bolts (3). | ||
| 11 | Turn the stop buffer (4) out until the stop buffer (4) and body are in contact when the front door is closed. | The adjustment result may otherwise be incorrect. |
ADJUST GAP DIMENSIONS
| Number | Designation | Model 447, 448 except code W64, W65, W68 | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|---|
| BE60.00-Z-1002-01KOJ | Adjust gap dimensions | Fender to headlamp | Dimension "BA" | mm | 2 (±1) | 2 (±1) |
| Fender to bumper | Dimension "BB" | mm | 0, 3 (±0, 25) | 0, 3 (±0, 25) | ||
| Fender to A-pillar | Dimension "BC" | mm | 2, 6 (±1) | 2, 6 (±1) | ||
| Fender to front door | Dimension "BD" | mm | 4, 5 (±0, 8) | 4, 5 (±0, 8) | ||
| Fender to longitudinal member | Dimension "BE" | mm | 4, 5 (±1, 2) | 4, 5 (±1, 2) | ||
| For picture, see | AR60.00-S-0700-01E | AR60.00-S-0700-01E | ||||
ADJUST GAP DIMENSIONS
| Number | Designation | Model 447, 448 except code W64, W65, W68 | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|---|
| BE60.00-Z-1004-01KOJ | Adjust gap dimensions | Front door to longitudinal member | Dimension "DA" | mm | 6 (+2/-1) | 6 (+2/-1) |
| Front door to sidewall | Dimension "DB" | mm | 4 (±1) | 4 (±1) | ||
| Front door to sliding door | Dimension "DC" | mm | 4 (+1, 2/-0, 8) | 4 (+1, 2/-0, 8) | ||
| Front door to A-pillar | Dimension "DD" | mm | 4, 5 (+1, 5/-1) | 4, 5 (+1, 5/-1) | ||
| Front door to fuel filler door | Dimension "DE" | mm | 4 (±1) | 4 (±1) | ||
| For picture, see | AR60.00-S-0700-01E | AR60.00-S-0700-01E | ||||
FRONT DOOR
| Number | Designation | Model 447, 448 | |
|---|---|---|---|
| BA72.10-Z-1004-01KOG | Bolt, hinge on door | Nm | 25 |
FRONT DOOR
| Number | Designation | Model 447, 448 | |
|---|---|---|---|
| BA72.10-Z-1005-01KOG | Bolt, lock striker to B-pillar | Nm | 20 |
