Remove/Install Rear Roof Cutout Trim On Pop-Up Roof - AR77.70-S-0021E
Model 447.7
With Code ZH6 (Marco Polo ACTIVITY)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

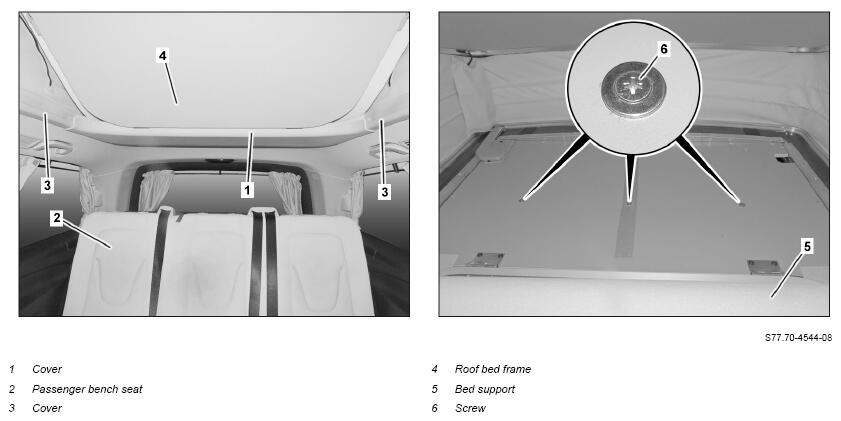

| 1 | Move passenger bench seat (2) toward rear | ||
| 2 | Remove both side panelings (3) on pop-up roof cutout | Model 447.7 with code ZH6 (Marco Polo ACTIVITY) with code ZK9 (Lifting roof hatch) |
AR77.70-S-0022E |
| 3 | Lower roof bed frame (4) | ||
| 4 | Fold up mattress pad (5) toward front until bolt (6) is accessible | ||
| 5 | Remove screw/bolts (6) | ||
| 6 | Set up roof bed frame (4) | ||

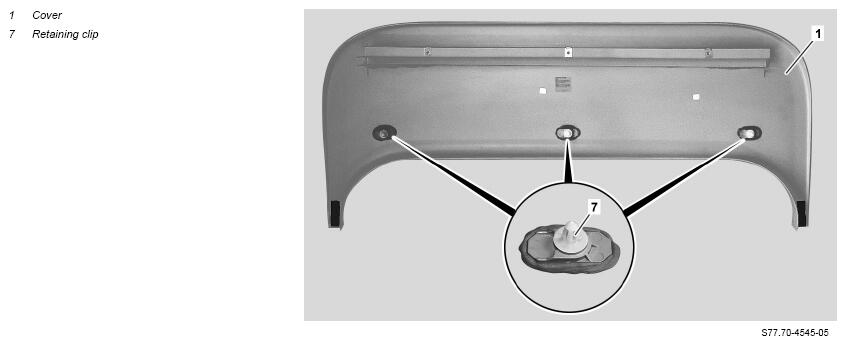

| 7 | Unclip retaining clips (7) and remove paneling (1) | Fig 1 | |
| 8 | Install in the reverse order |
