Remove/Install Side Roof Cutout Trim On Pop-Up Roof - AR77.70-S-0022E
Model 447.7/8
With Code ZK9 (Lifting roof hatch)
Model 447.8
With Code ZK0 (EASY UP pop-up roof, electric)
Shown on left side of vehicle on model 447.8 With Code ZK7 (MARCO POLO equipment line)
Shown on right side of vehicle on model 447.7 With Code ZH6 (Marco Polo ACTIVITY)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove | |||
| 1 | Open pop-up roof | Model 447.7/8 with code ZK9 (Lifting roof hatch) |
AR77.70-S-0001-01E |
| Model 447.8 with code ZK0 (EASY UP pop-up roof, electric) |
AR77.75-S-0001-03E | ||
| 2 | Fold up roof bed and fix in place | ||

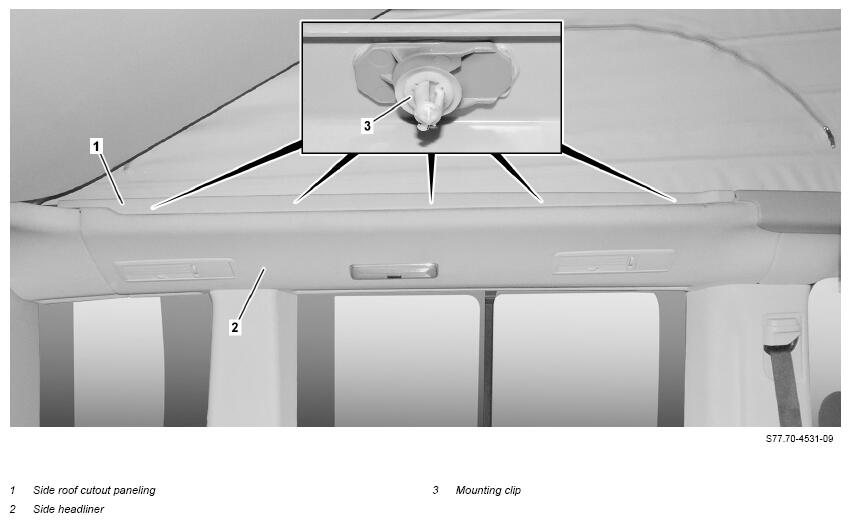

| 3.1 | Unclip retaining clips (3) one after the other and remove side roof cutout paneling (1) in direction of center of vehicle | Model 447.8 with code ZK7 (MARCO POLO equipment line) Carefully unclip retaining clips (3). Ensure that roof cutout paneling (1) and side headliner (2) are not damaged. |
Fig 1 |

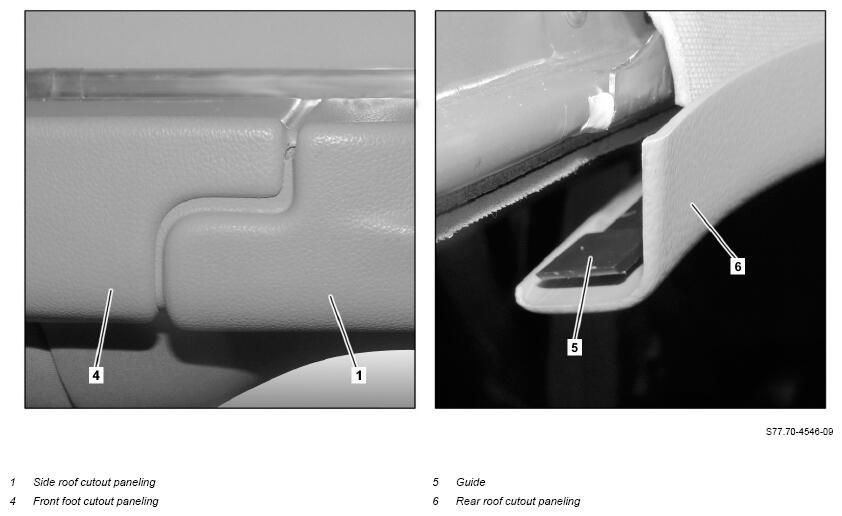

| 3.2 | Loosen side roof cutout paneling (1) first at front roof cutout paneling (4) one after the other, unclip retaining clips (3) one after the other remove side roof cutout paneling (1) from rear roof cutout paneling (6) | Model 447.7 with code ZH6 (Marco Polo ACTIVITY) Carefully unclip retaining clips (3). Ensure that the side roof cutout paneling (1) and rear roof cutout paneling (6) are not damaged. |
Fig 1 |
| Install | |||
| 4.1 | Install side roof cutout paneling (1) | Model 447.8 with code ZK7 (MARCO POLO equipment line) | |
| 4.2 | First push side roof cutout paneling (1) below guide (5) on rear roof cutout paneling (6), then position below front roof cutout paneling (4) and install | Model 447.7 with code ZH6 (Marco Polo ACTIVITY) | |
| 5 | Fold down roof bed | ||
| 6 | Close pop-up roof | Model 447.7/8 with code ZK9 (Lifting roof hatch) |
AR77.70-S-0001-01E |
| Model 447.8 with code ZK0 (EASY UP pop-up roof, electric) |
AR77.75-S-0001-03E |
