Remove, Install Front Pop-Up Roof Cutout Paneling - AR77.70-S-0020E

Model 447.7/8

With Code ZK9 (Lifting roof hatch)

Model 447.8

With Code ZK0 (EASY UP pop-up roof, electric)

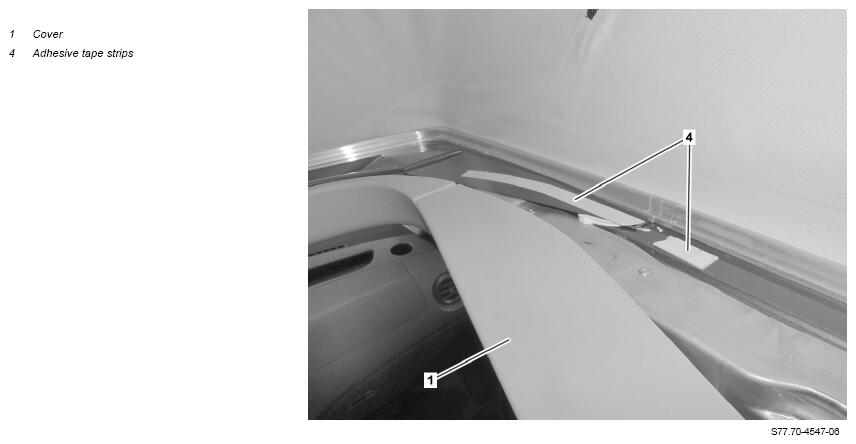

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

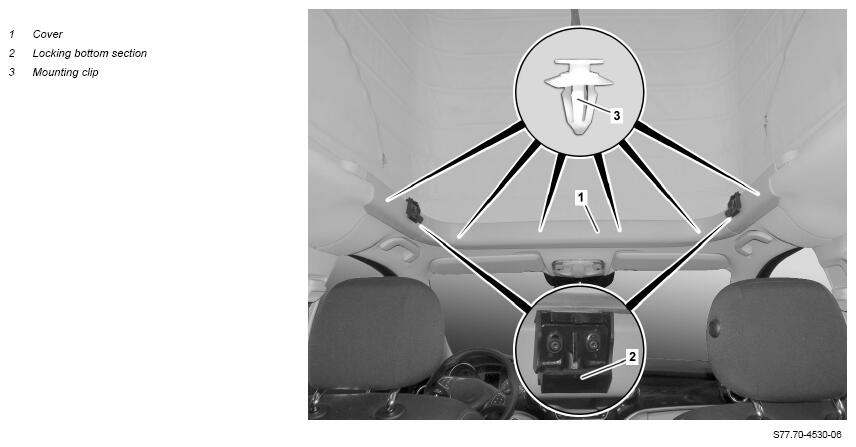

Shown on vehicle With Code ZK9 (Pop-up roof)

Courtesy of MERCEDES-BENZ USA

Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove both side paneling for roof cutout on pop-up roof		AR77.70-S-0022E
2	Mark assembly position of lock bottom sections (2) for pop-up roof	Model 447.7/8 with code ZK9 (Lifting roof hatch)
3	Remove lock bottom sections (2)	Model 447.7/8 with code ZK9 (Lifting roof hatch) : Observe markings. Bolt, locking bottom section to roof cutout for pop-up roof	*BA77.70-Z-1001-01KOB
4	Detach paneling (1) from adhesive strips (4) on both sides of vehicle	Carefully detach paneling (1). Danger of damaging paneling (1). Long wedge	Fig 1
5	Unclip paneling (1) from retaining clips (3) and remove	: Replace adhesive strips (4). Adhesive tape	*BR00.45-Z-1022-02A
		Clip remover	Fig 2
6	Install in the reverse order

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
