Remove/Install Stowage Compartment In Passenger-Side Instrument Panel Bottom Section - AR68.10-S-1610E

Model 447

Except Code F66 (Glove compartment, lockable)

Courtesy of MERCEDES-BENZ USA

Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove side paneling from instrument panel		AR68.10-S-1503E

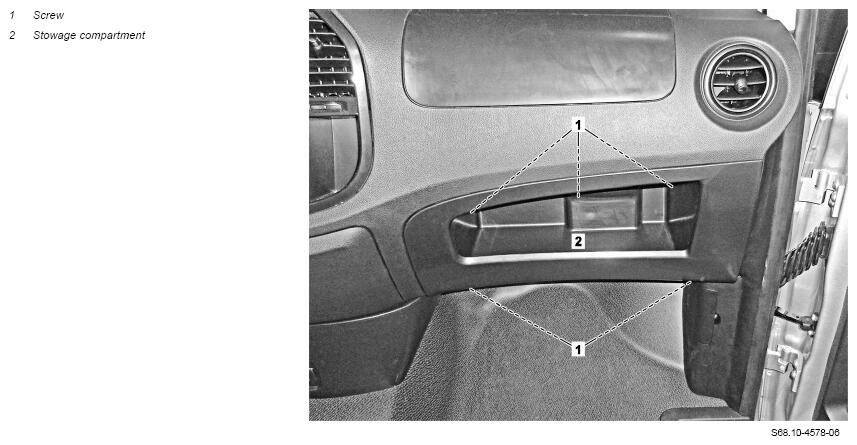

2	Remove bolt (1)
3	Remove stowage compartment (2) toward rear	Check retaining clips, replace if required.
4	Install in the reverse order
