Remove/Install Cover For Loudspeaker - AR68.10-S-1050E

Model 447, 448

Shown On model 447.8 Except Code XM7 (Facelift II)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge	Model 447 with engine 780	AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install

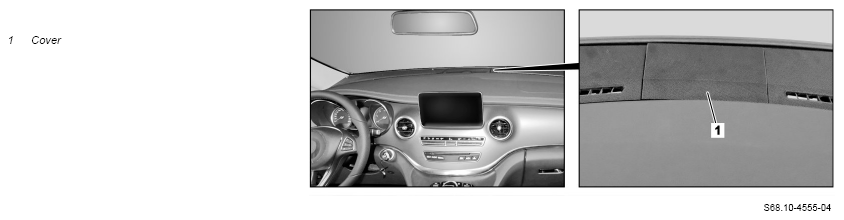

1	Remove cover (1).	To do so, place the long wedge between the instrument panel and cover (1). Long wedge	Fig 1
2	Release and disconnect the electrical connector to the warning display for front Active Parking Assist.	Model 447.6/7, 448.7 with code EZ7 (Active Parking Assist) except code XM7 (MOPF II)
3	Remove cover (1).	Check the retaining clamps for damage. If damage is present: ↓ Replace cover (1).
4	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
