Remove/Install Upper Door Guide For Sliding Door - AR72.16-S-7841E
Model 447, 448
Shown On model 447.7
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||

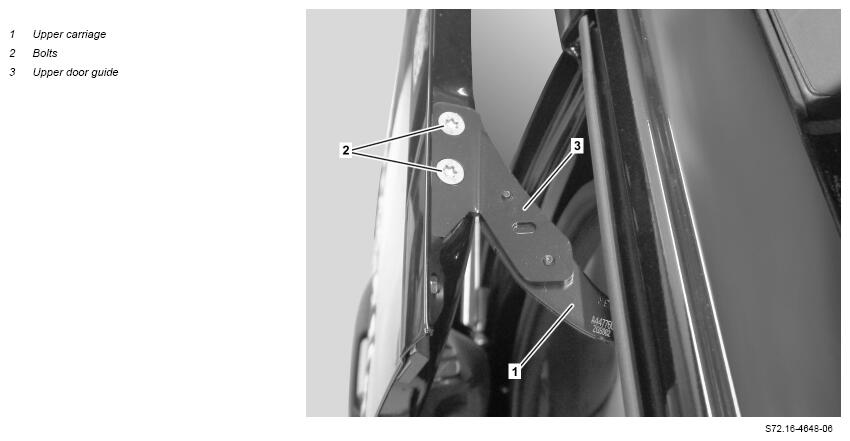

| 1 | Remove upper sliding carriage (1) for sliding door | AR72.16-S-7842E | |
| 2 | Remove upper guide rail for sliding door | AR72.16-S-7811E | |
| 3 | Unscrew screws/bolts (2) | *BA72.16-Z-1001-01KOJ | |
| 4 | Remove upper door guide (3) | ||
| 5 | Install in the reverse order |
SLIDING DOORS
| Number | Designation | Model 447, 448 | |
|---|---|---|---|
| BA72.16-Z-1001-01KOJ | Bolt, door guide at top to sliding door | Nm | 23 |
