Remove/Install Front Door Lock - AR72.10-S-4011E
Model 447
Model 448

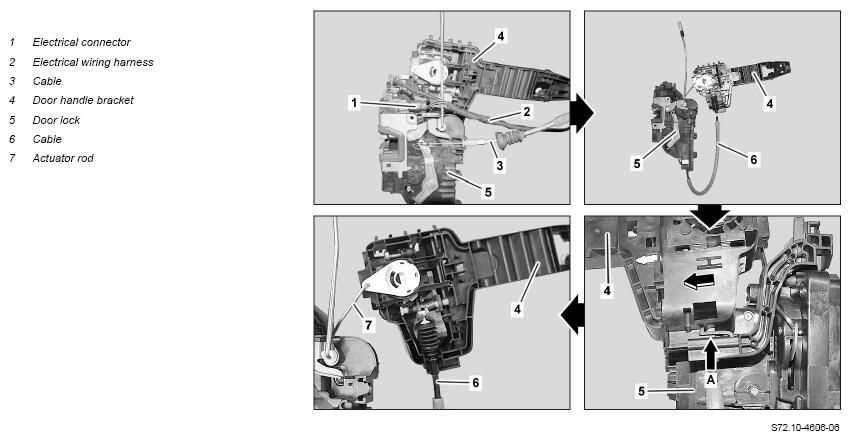

Shown On left door lock With Code FZ8 (Comfort opening and closing with IR remote control)
| Remove | |||
| 1 | Loosen door module together with door lock (5) and door handle holder (4) from front door | AR72.10-S-0900E | |
| 2 | Disconnect electrical connector (1) from door lock (5) | 3 Remove electrical connector (2) from door module (5) Model 447 with code FZ8 (Convenience opening and closing w. IR remote ctrl.) Model 448 with code FZ8 (Convenience opening and closing w. IR remote ctrl.) |
|
| 4 | Remove cable (3) from door lock (5) and remove door lock (5) together with door handle bracket (4) | ||
| 5 | Unlock catch (arrow A) and remove door handle bracket (4) from door lock (5) in direction of arrow | ||
| 6 | Remove cable (6) from door handle bracket (4) | ||
| 7 | Remove actuation linkage (7) from door lock (5) | On door lock (5) on driver side. | |
| Install | |||
| 8 | Install actuator rod (7) on door lock (5) | On door lock (5) on driver side. | |
| 9 | Install cable (6) on door handle holder (4) | ||
| 10 | Push door handle holder (4) over guide of door lock (5) until lock (arrow A) arrests | ||
| 11 | Install cable (3) on door lock (5) | ||
| 12 | Fasten electrical wiring harness (2) on door lock (5) | Model 447 with code FZ8 (Convenience opening and closing w. IR remote ctrl.) Model 448 with code FZ8 (Convenience opening and closing w. IR remote ctrl.) |
|
| 13 | Connect electrical connector (1) to door lock (5) | ||
| 14 | Position door lock (5) in front door together with door handle holder (4) and tighten | AR72.10-S-0900E | |
| 15 | Install outer door handle in front door | AR72.10-S-2400E | |
| Check | |||
| 16 | Check function of door lock (5), door handle holder (4) and door handle | If malfunction is present ↓ Check whether mounting and connecting components are seated correctly. |
|
| Install | |||
| 17 | Install door module | AR72.10-S-0900E | |
| Check | |||
| 18 | Check for proper closing and locking |
