Remove/Install Front Door Hinge - AR72.10-S-2660E
Model 447
Model 448
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||

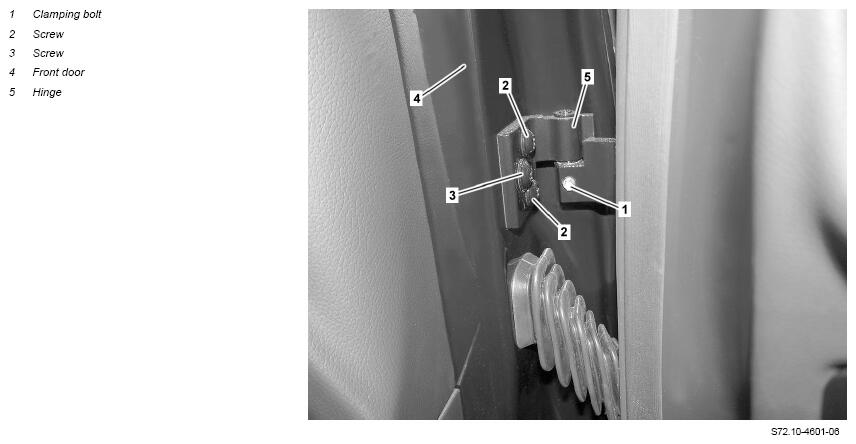

| 1 | Slacken clamp screw (1) | ||
| 2 | Unscrew screws/bolts (2) | *BA72.10-Z-1004-01KOG | |
| 3 | Secure front door (4) against falling down | ||
| 4 | Unscrew bolt (3) | *BA72.10-Z-1004-01KOG | |
| 5 | Remove hinge (5) | ||
| 6 | Install in the reverse order | ||
| 7 | Adjust front door (4) | AR72.10-S-0550E |
FRONT DOOR
| Number | Designation | Model 447, 448 | |
|---|---|---|---|
| BA72.10-Z-1004-01KOG | Bolt, hinge on door | Nm | 25 |
