Remove/Install Front Door - AR72.10-S-0500E

Model 447

Model 448

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove trim (1)	Remove left paneling (1)	AR68.30-S-4020E
		Remove right paneling (1)	AR68.30-S-4030E

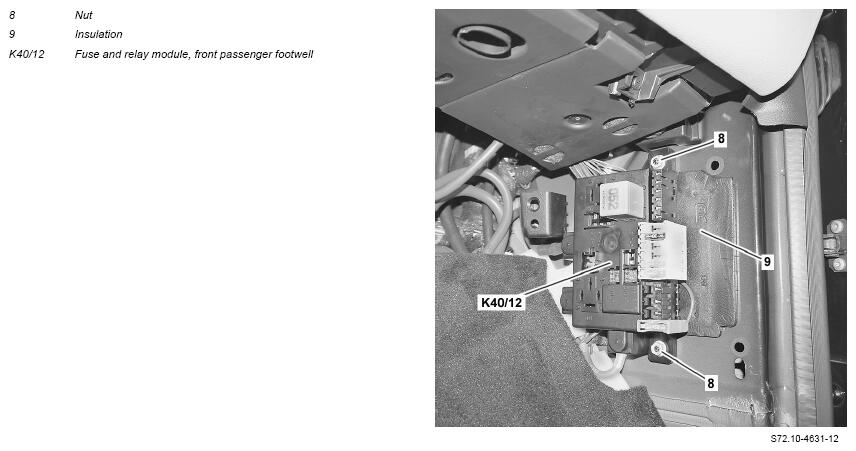

2	Unscrew nuts (8)	When removing front door on passenger side.
3	Remove insulation (9)	Ensure that insulation (9) is seated correctly.
4	Remove fuse and relay module, passenger footwell (K40/12) lay down to side	When removing front door on passenger side.

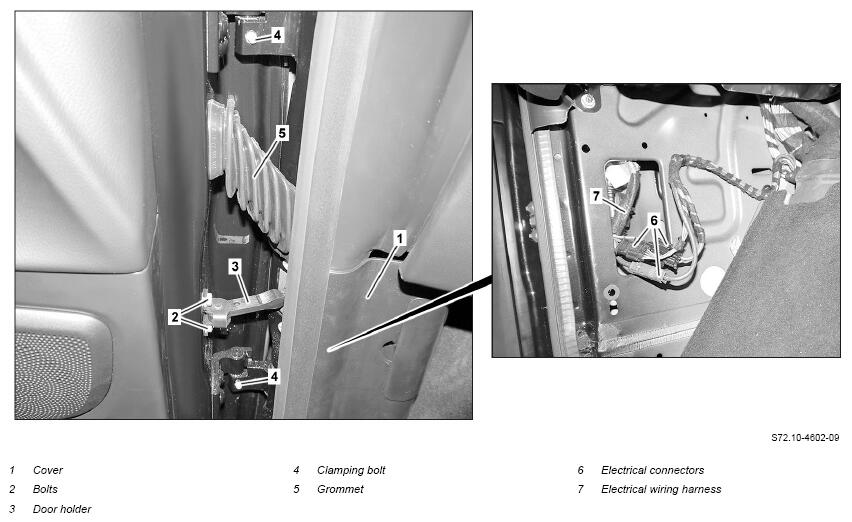

5	Separate electrical connections (6)	The number of electrical connectors (6) can vary depending on the equipment installed.
6	Remove grommet (5) from A-pillar
7	Unscrew bolts (2) from door holder (3)	Bolt of door holder to door	*BA72.10-Z-1002-01KOG
8	Loosen clamping screws (4)
9	Remove front door from hinges	Carefully handle front door. Otherwise paint damage can occur. Helper required. Guide electrical wiring harness (7) through opening in A-pillar.
10	Install in the reverse order
11	Adjust front door		AR72.10-S-0550E

FRONT DOOR

Number	Designation		Model 447, 448
BA72.10-Z-1002-01KOG	Bolt of door holder to door	Nm	14
